  11. Three-Phase General Purpose Motor, 2 HP, 184T Frame, 230/460V AC Voltage, 1173 rpm Nameplate RPM

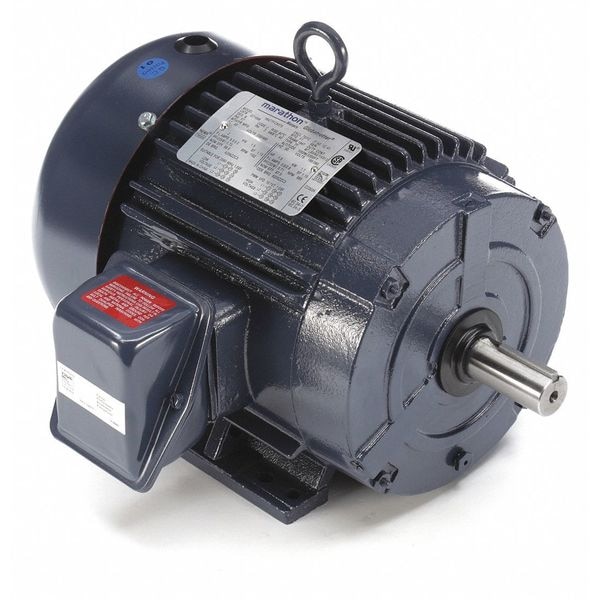

Marathon Three-Phase General Purpose Motor, 2 HP, 184T Frame, 230/460V AC Voltage, 1173 rpm Nameplate RPM 184TTFCD6076 - main

Three-Phase General Purpose Motor, 2 HP, 184T Frame, 230/460V AC Voltage, 1173 rpm Nameplate RPM

  • Mfr # 184TTFCD6076

  • Zoro # G5824716

product price: $870.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1173 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.2/3.1 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
184TTFCD6076
Zoro #
G5824716
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 5/16 in
Overall Length
16 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1173 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.2/3.1 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93.6 %
Standards
CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Includes
Conduit Box
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Weight
116 lb
Usable @ 200V
No
Usable @ 208V
No
NEMA Design
B
Inverter Rating
10:1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1173 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.2/3.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1,101-1,200, CSA, UL
