Shop MARATHON

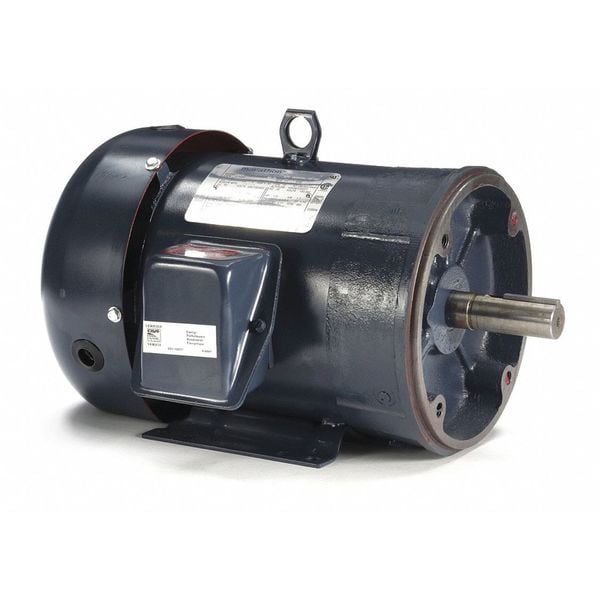

Three-Phase General Purpose Motor, 2 HP, 184TC Frame, 230/460V AC Voltage, 1173 rpm Nameplate RPM

  • Mfr # 184TTFBD6078
  • Zoro # G5823991
product price:
$
835.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1173 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
6.2/3.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTFBD6078
Zoro #
G5823991
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/8 in
Overall Length
16 7/8 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Frame Size
184TC
Wire Rope Length
16 7/8 in
Length
16 7/8 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1173 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
6.2/3.1 A
Frame
184TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
A
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
110 lb
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Application
General Purpose
Nameplate Voltage @ 50 Hz
220/380V AC, 240/415V AC, 400V AC
NEMA Design Class
A
Bearing Type
Ball
Full Load Current @ 60 Hz
6.2/3.1 A
Number of Speeds
1
Nameplate RPM @ 50 Hz
940/945/950 RPM
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Frequency
60 Hz
Manufacturers Warranty
1 yr
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1173 rpm, Frame 184TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.2/3.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
