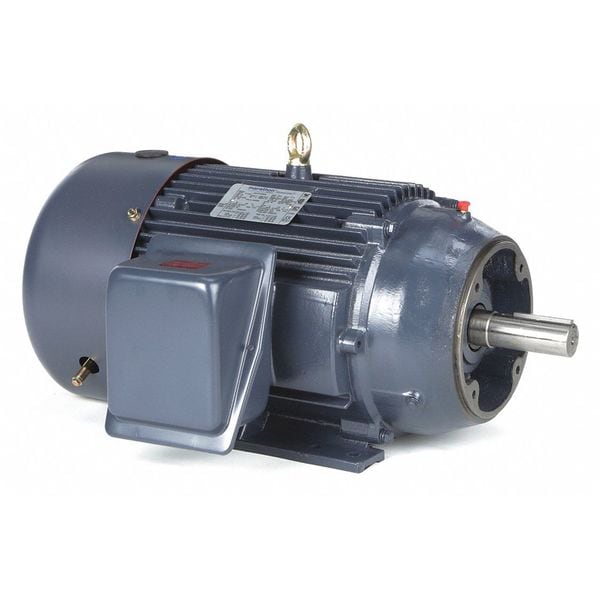

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 1,768 Nameplate RPM
Mfr # 256TTFCD6028
Zoro # G9815985
product price:Â $2,162.99
/ea
Additional $140.00 delivery surcharge applies per item.
Key Features
HP
20
Nameplate RPM
1,768
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.2 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
256TTFCD6028
Zoro #
G9815985
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
22 3/8 in
Overall Length
26 3/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Frame Size
256TC
Shaft Diameter
1 5/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,768, Frame 256TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
