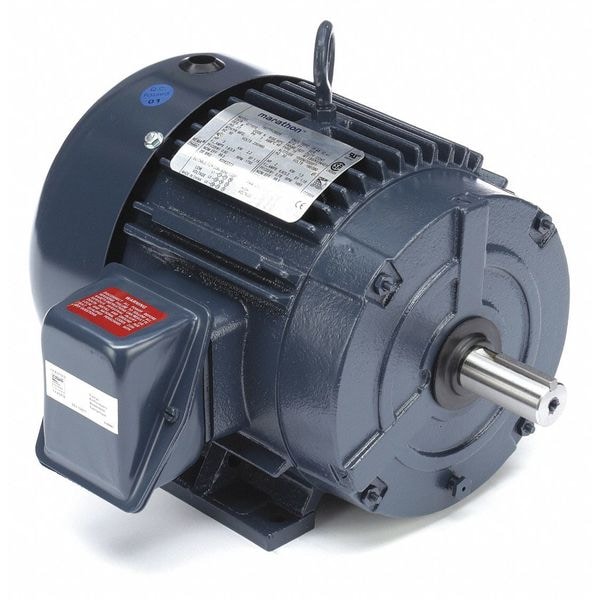

Marathon Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM 182TTFCD6026 - main

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM

  • Mfr # 182TTFCD6026

  • Zoro # G6111822

product price:  $731.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1762 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
182TTFCD6026
Zoro #
G6111822
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 5/16 in
Overall Length
15 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Frame Size
182T

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1762 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Inverter Rated
Yes
Includes
Conduit Box
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
A
Usable @ 208V
Not Usable at 208V
Weight
97 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Nameplate RPM @ 50 Hz
1445/1455 RPM
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
8.0/4.0 A
Insulation Class
F
NEMA Design Class
A
Product Type
General Purpose Motor
Application
General Purpose
Shaft Design
Keyed
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
Motor Enclosure Type
Totally Enclosed Fan Cooled
Number of Speeds
1
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
