  11. Three-Phase General Purpose Motor, 3 HP, 182T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM

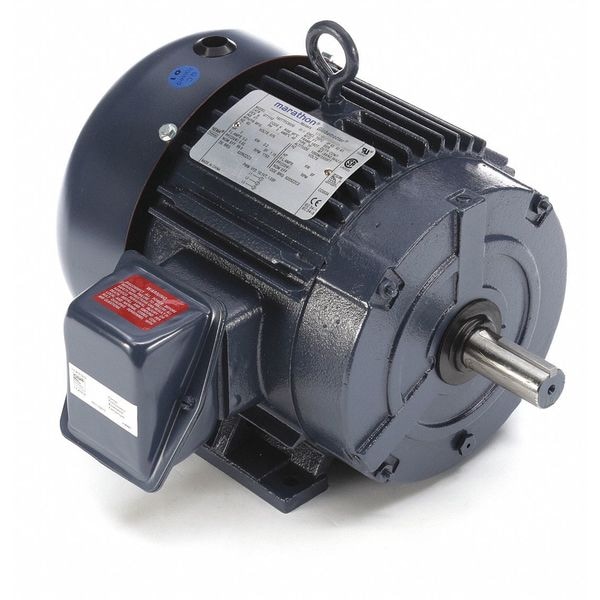

Marathon Three-Phase General Purpose Motor, 3 HP, 182T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM 182TTFCD6030 - main

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM

  • Mfr # 182TTFCD6030

  • Zoro # G5563966

product price: $631.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1762 rpm
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.2 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
182TTFCD6030
Zoro #
G5563966
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 5/16 in
Overall Length
15 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1762 rpm
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.2 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
575V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
No
NEMA Design
A
Weight
98 lb
Duty Cycle
Continuous
Usable @ 200V
No
Inverter Rating
10:1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
