Shop MARATHON

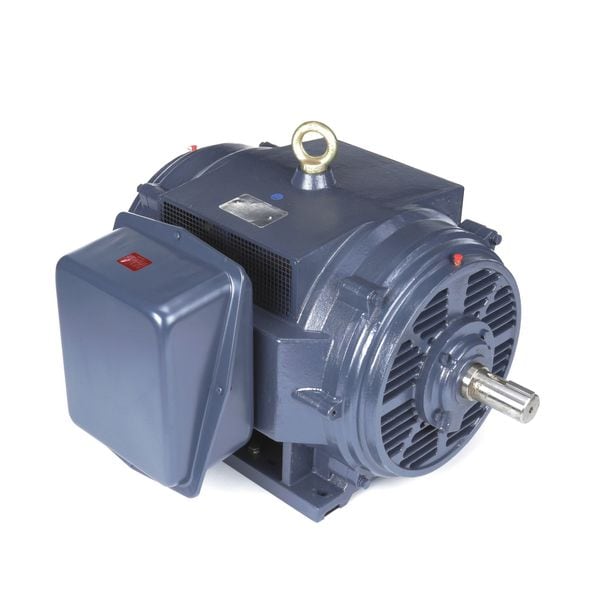

Three-Phase General Purpose Motor, 150 HP, 405TS Frame, 460V AC Voltage, 3575 rpm Nameplate RPM

  • Mfr # 405TSTDCD6007

  • Zoro # G9877533

product price:  $10,472.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
150
Nameplate RPM
3575 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
165.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405TSTDCD6007
Zoro #
G9877533
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
33 5/16 in
Overall Length
35 7/16 in
Shaft Dia.
4 1/4 in
Shaft Length
2 1/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
4 1/4 in
Frame Size
405TS

Details

Item
General Purpose Motor
HP
150
Nameplate RPM
3575 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
165.0 A
Frame
405TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.1 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Weight
1,149 lb
Capacitor Required
No
Inverter Rating
Inverter Rated
Manufacturers Warranty
1 yr
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
165.0 A
Nameplate RPM @ 50 Hz
1,750 RPM
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
230/460V AC
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Number of Speeds
1
Insulation Class
F
Bearing Type
Ball
Product Type
General Purpose Motor
NEMA Design Class
B

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 150 HP, Nameplate RPM 3575 rpm, Frame 405TS, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 165.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Recognized
