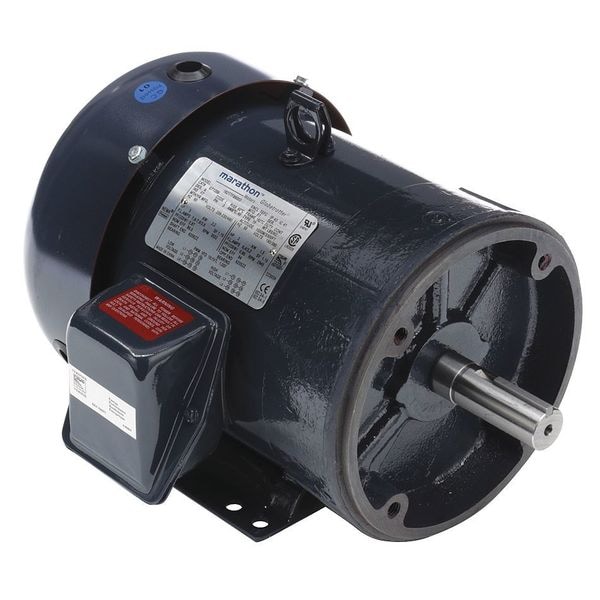

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM

  • Mfr # 182TTFBD6003
  • Zoro # G5528397
product price:
$
646.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3530 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.2/4.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTFBD6003
Zoro #
G5528397
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 1/8 in
Overall Length
15 7/8 in
Shaft Dia.
1 1/8 in
Shaft Length
2 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
182TC
Shaft Diameter
1 1/8 in
Wire Rope Length
15 7/8 in
Length
15 7/8 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3530 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.2/4.1 A
Frame
182TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Weight
83 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
NEMA Design
A
Inverter Rating
Inverter Rated
Insulation Class
F
Shaft Design
Keyed
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
A
Frequency
60 Hz
Manufacturers Warranty
1 yr
Number of Speeds
1
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Voltage @ 50 Hz
230/460V AC
Nameplate RPM @ 50 Hz
1,770 RPM
Full Load Current @ 60 Hz
8.2/4.1 A
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3530 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.2/4.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600
