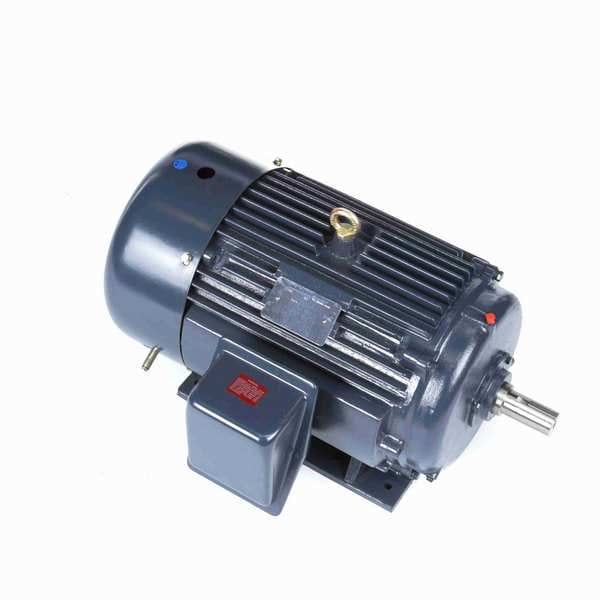

Three-Phase General Purpose Motor, 30 HP, 286TS Frame, 230/460V AC Voltage, 1770 Nameplate RPM
Mfr # 286TSTFCD6026
Zoro # G113037686
product price: $2,590.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.
Key Features
HP
30
Nameplate RPM
1770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
71.0/35.5 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
286TSTFCD6026
Zoro #
G113037686
UPC #
722856061942
Country of Origin
Mexico
Dimensions
Length Less Shaft
23 1/2 in
Overall Length
26 3/4 in
Shaft Dia.
1 5/8 in
Shaft Length
3 1/4 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1770, Frame 286TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.0/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCWSE Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, 1,701-1,800
