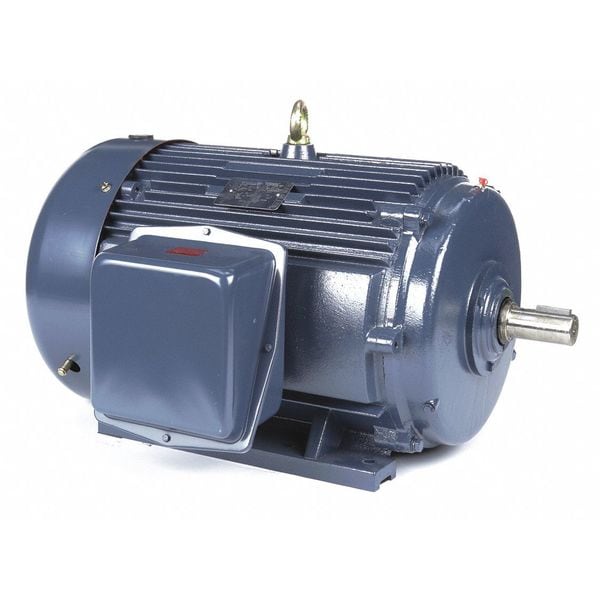

Three-Phase General Purpose Motor, 75 HP, 365TS Frame, 575V AC Voltage, 3570 rpm Nameplate RPM
Mfr # 365TSTFCD6002
Zoro # G9875652
product price: $7,098.03
/ea
Item requires special delivery charges. A $390.00 per item surcharge will be applied.
Key Features
HP
75
Nameplate RPM
3570 rpm
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
67.0 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
365TSTFCD6002
Zoro #
G9875652
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
28 7/16 in
Overall Length
32 3/16 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 3570 rpm, Frame 365TS, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 67.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Listed
