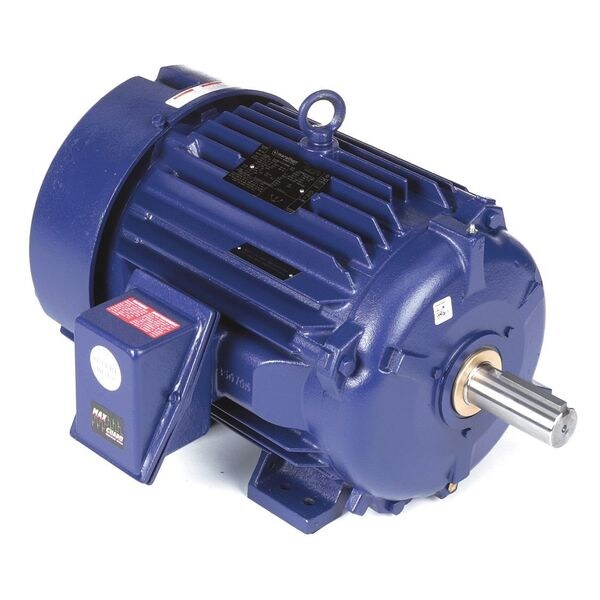

Three-Phase Severe Duty Motor, 15 hp HP, 286T Frame, 460V AC Voltage, 875 RPM Nameplate RPM

  • Mfr # 286THFNA19101

  • Zoro # G1994988

product price:  $6,025.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

HP
15 hp
Nameplate RPM
875 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
22.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286THFNA19101
Zoro #
G1994988
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
22 7/8 in
Overall Length
27 11/16 in
Shaft Dia.
1 7/8 in
Shaft Length
4 13/16 in
Lead Length
3" to 8"
Shaft Diameter
1 7/8 in
Wire Rope Length
27 11/16 in
Frame Size
286T

Details

Item
Severe Duty Motor
HP
15 hp
Nameplate RPM
875 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
22.0 A
Frame
286T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
0-1000
Phase
Three
No. of Speeds
1
Motor Application
Severe Duty
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.1 %
Standards
CE, CSA, IEEE 841, UL Recognized
CC Number
CC003A
Includes
Breather/Drain
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Weight
326 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Inverter Rated
Inverter Rated
Hazardous Location Class
Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D
Temp. Code
T2B
Product Type
Severe Duty Motor
NEMA Design Class
B
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Application
Severe Duty
Number of Speeds
1
Mounting Position
Horizontal
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
22.0 A
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Inverter Rated
Frequency
60 Hz

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 875 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 22.0 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
