Shop MARATHON

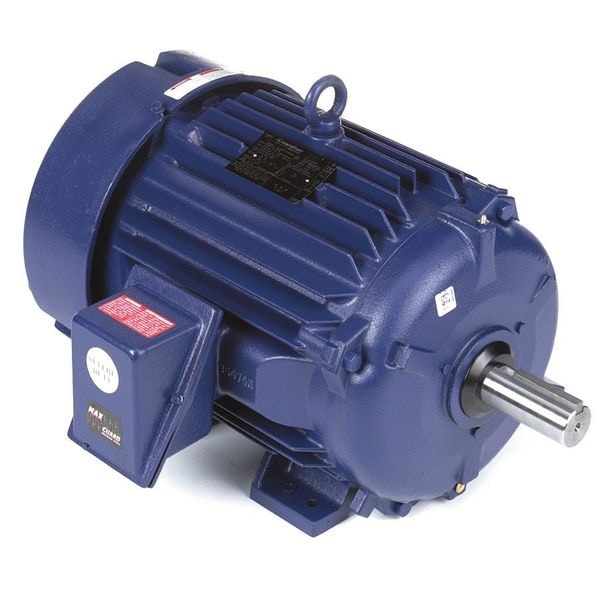

Three-Phase Severe Duty Motor, 20 hp HP, 286T Frame, 460V AC Voltage, 1,180 RPM Nameplate RPM

  • Mfr # 286TTFCD6576
  • Zoro # G9943665
product price:
$
4,028.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
20 hp
Nameplate RPM
1,180 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
26.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286TTFCD6576
Zoro #
G9943665
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
23 5/16 in
Overall Length
28 1/8 in
Shaft Dia.
1 7/8 in
Shaft Length
4 13/16 in
Lead Length
3" to 8"
Frame Size
286T
Wire Rope Length
28 1/8 in
Shaft Diameter
1 7/8 in
Length
28 1/8 in

Details

Item
Severe Duty Motor
HP
20 hp
Nameplate RPM
1,180 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
26.0 A
Frame
286T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
Severe Duty
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CE, CSA, IEEE45, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Max Guard Insulation
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
490 lb
Inverter Rated
Inverter Rated
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Hazardous Location Class
1 C,D / 2 F,G
Temp. Code
T2B
Frequency
60 Hz
Bearing Type
Ball
Number of Speeds
1
Full Load Current @ 60 Hz
26.0 A
Efficiency Rating
Premium Efficiency (IE3)
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Severe Duty Motor
Insulation Class
H
Application
Severe Duty
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Inverter Rated
Shaft Design
Keyed

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 26.0 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
