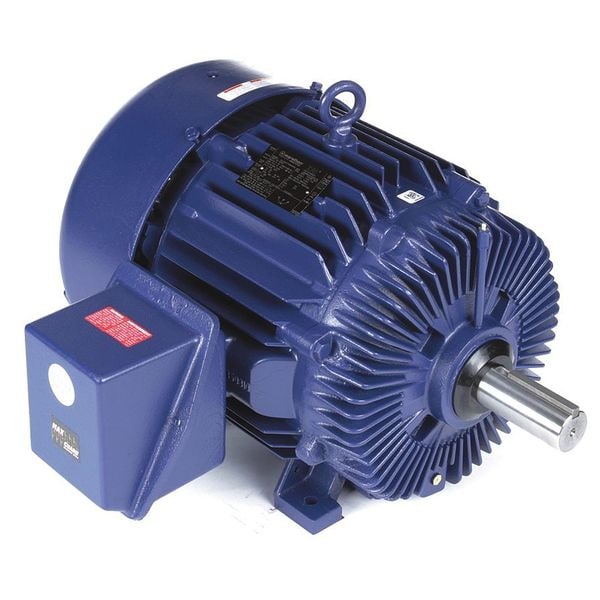

Three-Phase Severe Duty Motor, 25 hp HP, 324T Frame, 460V AC Voltage, 1,184 RPM Nameplate RPM

  • Mfr # 324TTFCD6576

  • Zoro # G9943622

product price:
$
5,003.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
25 hp
Nameplate RPM
1,184 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
32 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
324TTFCD6576
Zoro #
G9943622
UPC #
-
Country of Origin
Mexico
Item
Severe Duty Motor
HP
25 hp
Nameplate RPM
1,184 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
32 A
Frame
324T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
Hazardous Location
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93 %
Standards
CE, CSA, IEEE45, UL Listed
CC Number
CC003A
Includes
Max Guard Insulation, Shaft Key
Motor Thermal Protection
None
Inverter Rated
Yes
Hazardous Location Class
Class I
Temp. Code
T2B
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Hazardous Location Division
Division II
NEMA Design
B
Weight
3,198 lb
Duty Cycle
Continuous
Hazardous Location Group
Group A, Group B, Group C, Group D
Application
Hazardous Location
Mounting Position
Horizontal
Frequency
60 Hz
Temperature Code
T2B
Full Load Current @ 60 Hz
32 A
Product Type
Severe Duty Motor
Conduit Box Position
F1/F2
Insulation Class
H
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,184 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 32 A, 324T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
