Shop MARATHON

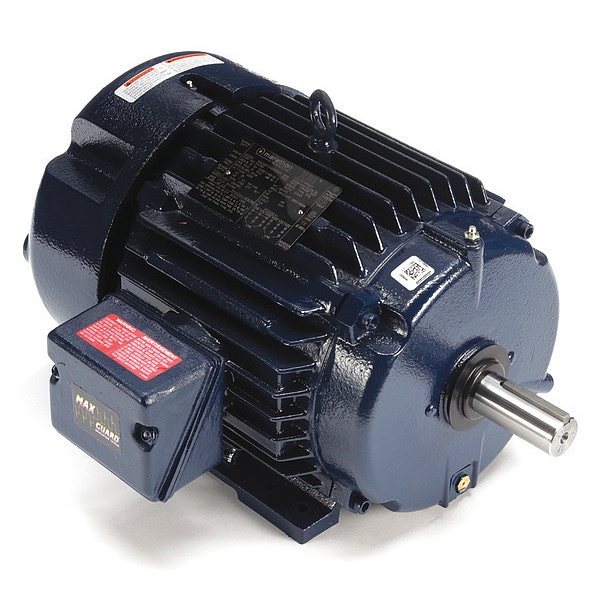

Three-Phase Severe Duty Motor, 7 1/2 HP, 230/460V AC Voltage, 213T Frame, 1765 rpm Nameplate RPM

  • Mfr # 213TTFCD6531

  • Zoro # G1195879

product price:
$
1,244.99
/ea
Additional $85.00 delivery surcharge applies per item.
See details

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
7 1/2
RPM Range
1701-1800
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
213TTFCD6531
Zoro #
G1195879
UPC #
-
Country of Origin
Mexico
Item
Severe Duty Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
7 1/2
RPM Range
1701-1800
Voltage
230/460V AC
Frame
213T
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application
General Purpose
Nameplate RPM
1765 rpm
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Three-Phase
Standards
CE, CSA, UL Listed
Phase
Three
Duty
Continuous
RPM Group
1701-1800
Full Load Amps
19.0/9.5 A
Ins. Class
H
Motor Bearings
Ball
Inverter Rated
Yes
Nominal Efficiency
91.7 %
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
NEMA Design
B
Weight
197 lb
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Mounting Position
Horizontal
Number of Speeds
1
Inverter Rating
Inverter Rated
Insulation Class
H
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
19.0/9.5 A
Frame Material
Cast Iron
Product Type
Severe Duty Motor
Nameplate RPM @ 50 Hz
985/990/980/985 RPM
NEMA Design Class
B
Frequency
60 Hz
Shaft Design
Keyed

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1765 rpm, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.0/9.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
