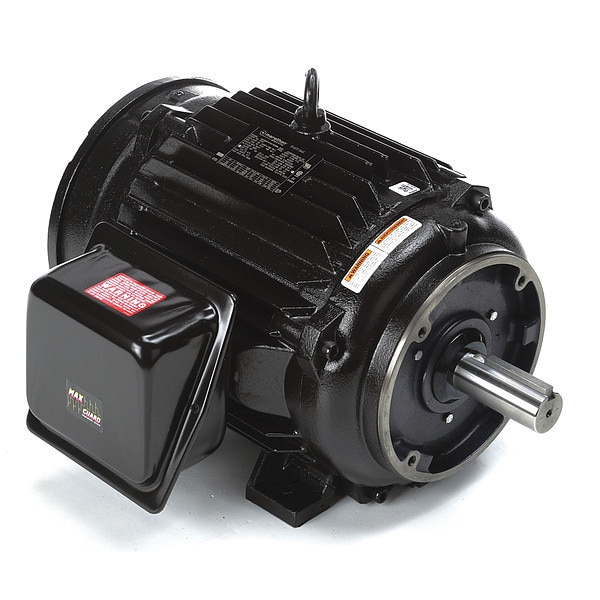

Vector Motor, 25 HP, 74.2 lb-ft, 575V
Mfr # 284THTNA7036
Zoro # G1980419
product price: $6,217.99
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
25
Torque
74.2 ft-lb
Nameplate RPM
1,770
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
284THTNA7036
Zoro #
G1980419
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1 7/8 in
Overall Length
27 1/16 in
Shaft Length
4 3/8 in
Length Less Shaft
22 11/16 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 575V AC, Full Load Amps 24.8 A, 284TC Frame, Torque 74.2 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
