Shop CENTURY

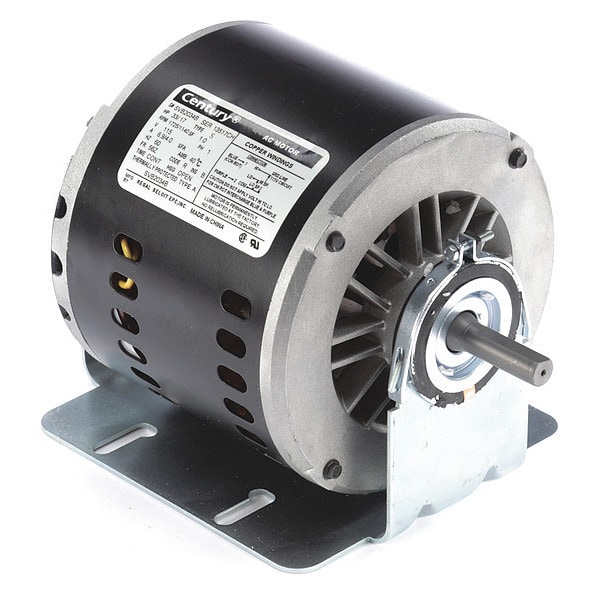

Evaporative Cooler Motor, 1/3 hp; 1/6 hp

  • Mfr # SVB2034BV1

  • Zoro # G1440144

product price:  $296.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3, 1/6
Full Load Amps
6.9/3.4 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SVB2034BV1
Zoro #
G1440144
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 7/16 in
Shaft Dia.
1/2 in
Ring Dia.
2 1/2 in
Shaft Length
1 1/2 in
Length Less Shaft
7 15/16 in
Resilient Ring Dia.
2 1/2 in
Shaft Diameter
1/2 in
Body Diameter
6.4 in
Resilient Ring Diameter
2 1/2 in
Frame Size
56Z

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3, 1/6
Full Load Amps
6.9/3.4 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
2
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725/1,140
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Standards
CSA, UL
Ring to Ring Center
7 7/16 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Includes
Hardware, Switch Parts
Features
Moisture Resistant
Finish
Varnish
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Number of Speeds
2
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
40 Degrees C
Product Type
Evaporative Cooler Motor
Frequency
60 Hz
Application
Evaporative Cooler
Drive Type
Direct Drive
Capacitor Required
Capacitor Not Required
Sub Application
Evaporative Cooler
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Wattage
250 W
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
6.9/3.4 A
Insulation Class
B

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.9/3.4 A Full Load Amps, 56Z Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
