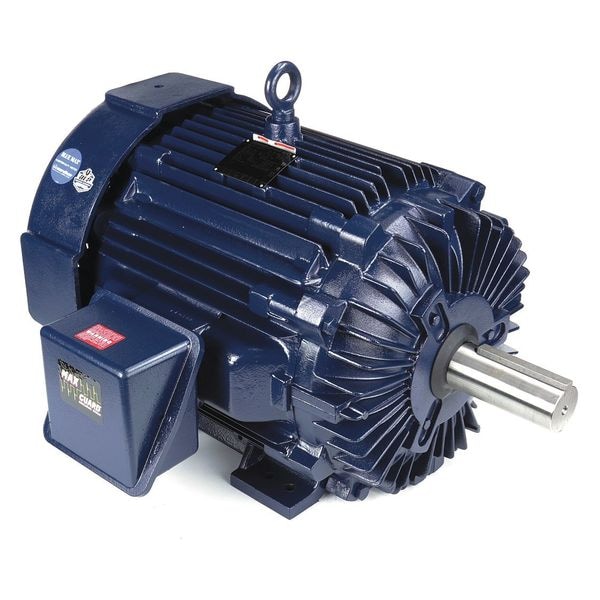

Vector Motor, 3-Phase, 150HP, 460V
Mfr # 445THFN8036
Zoro # G9922832
product price: $27,611.04
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
150
Nameplate RPM
1,790
Speed Range
2,000:1
Max. Speed
1,800 RPM
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
445THFN8036
Zoro #
G9922832
UPC #
-
Country of Origin
United States
Dimensions
Shaft Length
8 3/4 in
Shaft Dia.
3 3/8 in
Overall Length
45 9/16 in
Encoder Shaft Dimensions
1 in x 1 5/8 in
Manufacturers Warranty Length
3 yr
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 150 HP, Nameplate RPM 1,790, No. of Speeds 1, Voltage 460V AC, Full Load Amps 170 A, 445T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
