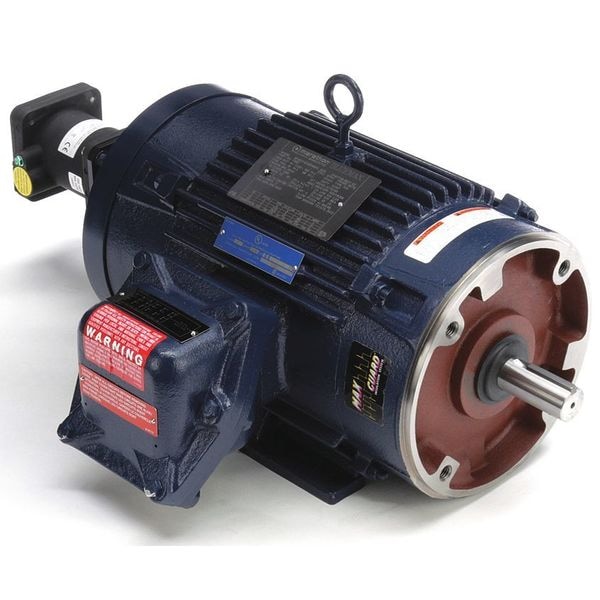

Vector Motor, 3 HP, 3600 rpm, 230/460V

  • Mfr # 182THES8048

  • Zoro # G5700195

product price:
$
9,416.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3
Nameplate RPM
1,745
Speed Range
2,000:1
Max. Speed
3,600 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182THES8048
Zoro #
G5700195
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Overall Length
24 13/16 in
Shaft Diameter
1 1/8 in
Frame Size
182TC
Wire Rope Length
24 13/16 in
Length
24 13/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
3
Nameplate RPM
1,745
Speed Range
2,000:1
Max. Speed
3,600 RPM
Frame
182TC
Voltage
230/460V AC
Motor Thermal Protection
None
Encoder Acceptable
Yes
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Efficiency Group
Standard Efficient
Warranty
3 yr
Insulation Feature
Max Guard
Motor Mounting Position
Horizontal
Motor Application
Crane
Standards
UL Listed
NEMA Design
A
Ins. Class
F
Motor Shaft Design
Keyed
Max. Operating Frequency
120 Hz
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Hz
60 Hz
Base
Rigid
Ambient Temperature
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Type
Rigid Base
Nominal Efficiency
86.5 %
Duty
Continuous
Motor Service Factor
1
Full Load Amps
8.2/4.1 A
Finish
Blue
Phase
Three
Frame Material
Cast Iron
Encoder Shaft
5/8 in
RPM Range
1,701-1,800
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
No. of Speeds
1
Weight
117 lb
Conduit Box Position
F1, F2
Product Type
Vector Motor
Shaft Design
Keyed
NEMA Design Class
A
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Ambient Temperature - Maximum
40 Degrees C
Maximum Operating Frequency
120 Hz
Efficiency Rating
NEMA Standard Efficiency
Insulation Class
F
Maximum Speed
3,600 RPM
Full Load Current @ 60 Hz
8.2/4.1 A
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Frequency
60 Hz
Inverter Rated
Inverter Rated

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.2/4.1 A, 182TC Frame, Max. Speed 3,600 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
