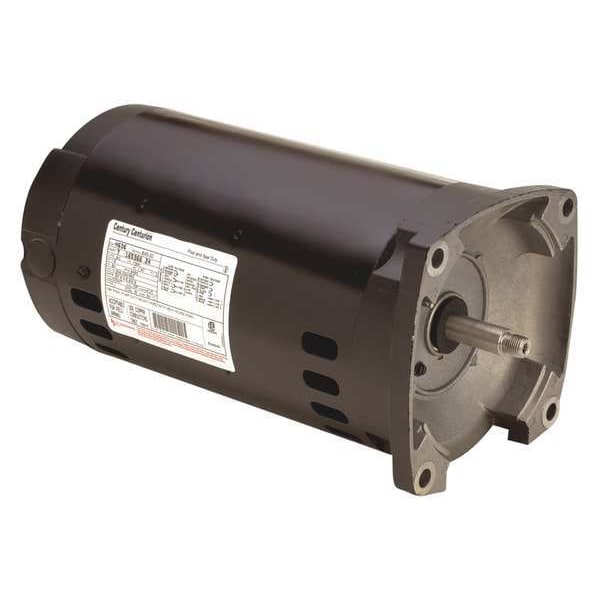

Pool Pump Motor, 3-Phase, 3 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # H755
  • Zoro # G0597843
product price:
$
691.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3
RPM Range
3,001-3,600
Motor Service Factor
1.15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H755
Zoro #
G0597843
UPC #
-
Country of Origin
Mexico
Item
Square Flange Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3
RPM Range
3,001-3,600
Motor Service Factor
1.15
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CW/CCW
Phase
Three
Voltage
208V AC to 230V AC, 460V AC
Full Load Amps
9.8-9.6/4.8 A
Motor Mounting Type
Face
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Hz
60 Hz
Motor Efficiency Group
Standard Efficient
Ins. Class
B
Shaft Material
Stainless Steel
Max. Ambient Temp.
50 Degrees C
Standards
CSA, UL
Design
Two Compartment
Motor Sub Application
Pool and Spa Pump
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Motor Thermal Protection
None
Motor Application
Pump
Motor Bearings
Ball
Motor Mounting Position
Horizontal
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Threaded
Weight
35 lb
Motor Frame Material
Steel
Efficiency Rating
Standard Efficiency (IE1)
Number of Wires
9
Number of Speeds
1
Mounting Position
Horizontal
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Application
Pump
Frequency
60 Hz
Full Load Current @ 60 Hz
9.8-9.6/4.8 A
Bearing Type
Ball
Sub Application
Pool and Spa Pump
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Threaded
Ambient Temperature - Maximum
50 Degrees C
Insulation Class
B
Frame Material
Steel

Description

Square Flange Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Frame 56Y, Hz 60 Hz, Full Load Amps 9.8-9.6/4.8, Height 6 1/2 in, HP 3, Ins. Class B, Length Less Shaft 13 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
