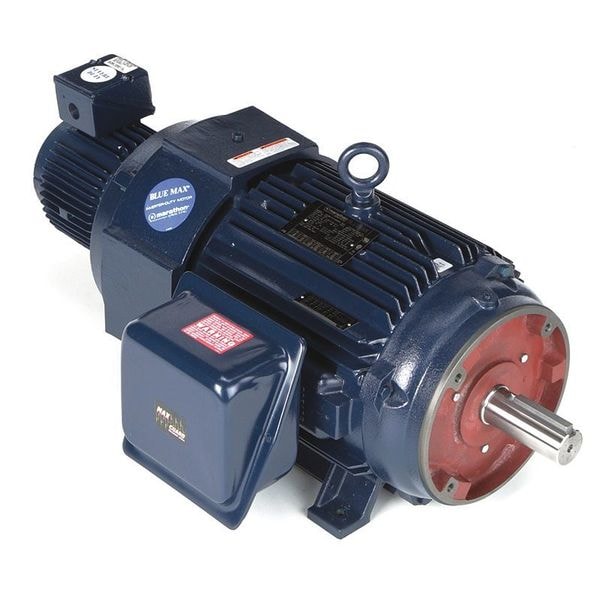

Vector Motor, 3-Phase, 25HP, 230/460V

  • Mfr # 284THFPA8038
  • Zoro # G9922981
product price:
$
7,300.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284THFPA8038
Zoro #
G9922981
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
37 13/16 in
Shaft Dia.
1 7/8 in
Shaft Length
4 3/8 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Encoder Shaft Diameter
1 in
Encoder Shaft Length
1 3/4 in
Shaft Diameter
1 7/8 in
Frame Size
284TC
Wire Rope Length
37 13/16 in
Length
37 13/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
25
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
284TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Frame Material
Cast Iron
Ambient Temperature
40 Degrees C
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Phase
Three
RPM Range
1,701-1,800
Motor Application
Crane
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Insulation Feature
Class F
Motor Mounting Position
Horizontal
Warranty
3 yr
Hz
60 Hz
Finish
Enamel
Standards
CE, CSA, UL Recognized
Encoder Shaft
1 in x 1-3/4 in
Motor Shaft Design
Keyed
Max. Operating Frequency
90 Hz
Full Load Amps
63.0/31.5 A
Motor Efficiency Group
Energy Efficient
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Nominal Efficiency
91.7 %
Base
Rigid
Encoder Acceptable
Yes
Ins. Class
H
Motor Frame Material
Cast Iron
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Bearings
Ball
NEMA Design
A
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Max. Ambient Temp.
104 Degrees F
Weight
470 lb
Conduit Box Location
Exterior
No. of Speeds
1
Conduit Box Position
F1, F2
NEMA Design Class
A
Ambient Temperature - Maximum
40 Degrees C
Maximum Operating Frequency
90 Hz
Nameplate Service Factor @ 60 Hz
1
Frame Finish
Enamel-Coated
Insulation Class
H
Bearing Type
Ball
Inverter Rated
Inverter Rated
Full Load Current @ 60 Hz
63.0/31.5 A
Efficiency Rating
NEMA Standard Efficiency
Shaft Design
Keyed
Frequency
60 Hz
Maximum Speed
1,800 RPM
Manufacturers Warranty
3 yr
Motor Enclosure Type
Totally Enclosed Blower Cooled
Product Type
Vector Motor

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 25 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 63.0/31.5 A, 284TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
