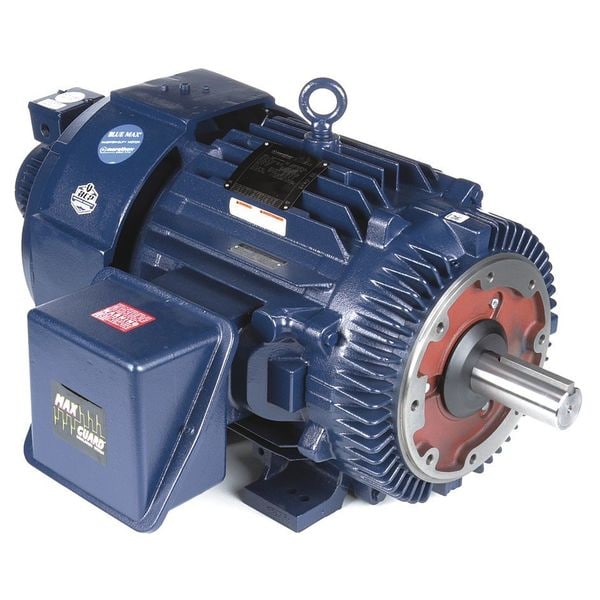

Vector Motor, 3-Phase, 75HP, 230/460V

  • Mfr # 365THFS8046
  • Zoro # G9922902
product price:
$
16,724.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
75
Nameplate RPM
1,780
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
365THFS8046
Zoro #
G9922902
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
2 3/8 in
Shaft Length
5 5/8 in
Overall Length
43 11/16 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Encoder Shaft Length
1 3/4 in
Frame Size
365TC
Shaft Diameter
2 3/8 in
Encoder Shaft Diameter
1 in
Wire Rope Length
43 11/16 in
Length
43 11/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
75
Nameplate RPM
1,780
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
365TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Finish
Enamel
Duty
Continuous
Frame Material
Cast Iron
RPM Range
1,701-1,800
Full Load Amps
180.0/90.0 A
Phase
Three
Ins. Class
H
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Efficiency Group
Energy Efficient
Motor Application
Crane
Motor Mounting Type
Rigid Base
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Warranty
3 yr
Base
Rigid
Motor Mounting Position
Horizontal
Motor Frame Material
Cast Iron
Motor Shaft Rotation
CW/CCW
Encoder Acceptable
Yes
Standards
CE, CSA, UL Recognized
Hz
60 Hz
Insulation Feature
Class F
Motor Bearings
Ball
Motor Shaft Design
Keyed
Ambient Temperature
40 Degrees C
Encoder Shaft
1 in x 1-3/4 in
Nominal Efficiency
93 %
Max. Operating Frequency
90 Hz
Motor Service Factor
1
NEMA Design
A
No. of Speeds
1
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Not Usable at 200V
Weight
1,026 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Conduit Box Position
F1, F2
Shaft Design
Keyed
Inverter Rated
Inverter Rated
Maximum Speed
1,800 RPM
Insulation Class
H
Product Type
Vector Motor
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
A
Frequency
60 Hz
Frame Finish
Enamel-Coated
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
180.0/90.0 A
Bearing Type
Ball
Efficiency Rating
NEMA Standard Efficiency
Motor Enclosure Type
Totally Enclosed Blower Cooled
Maximum Operating Frequency
90 Hz

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 75 HP, Nameplate RPM 1,780, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 180.0/90.0 A, 365TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
