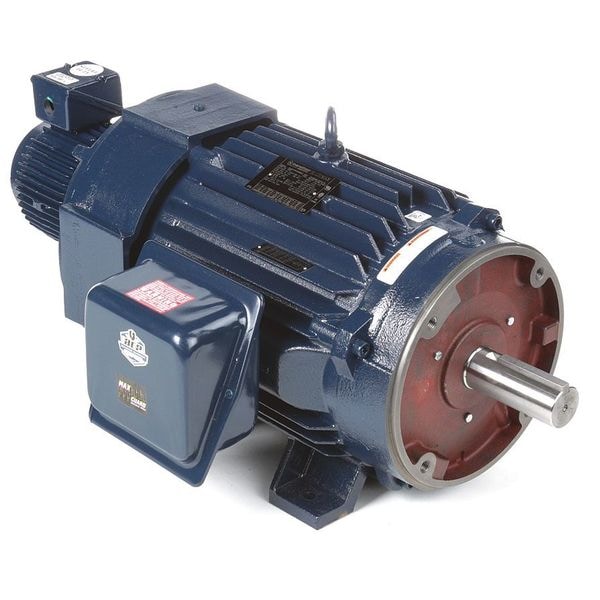

Vector Motor, 3-Phase, 40HP, 230/460V

  • Mfr # 324THFPA8038
  • Zoro # G9922945
product price:
$
9,545.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
40
Nameplate RPM
1,770
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
324THFPA8038
Zoro #
G9922945
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
40 9/16 in
Shaft Dia.
2 1/8 in
Shaft Length
5 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Encoder Shaft Length
1 3/4 in
Shaft Diameter
2 1/8 in
Frame Size
324TC
Encoder Shaft Diameter
1 in
Wire Rope Length
40 9/16 in
Length
40 9/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
40
Nameplate RPM
1,770
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
324TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Nominal Efficiency
94.5 %
Ambient Temperature
40 Degrees C
NEMA Design
A
Hz
60 Hz
Standards
CE, CSA Certified (LR2025), UL Recognized (E49747)
Encoder Shaft
1 in x 1-3/4 in
Full Load Amps
100.0/50.0 A
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Encoder Acceptable
Yes
Motor Mounting Type
Rigid Base
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Bearings
Ball
Finish
Enamel
Warranty
3 yr
Insulation Feature
Class F
Max. Operating Frequency
90 Hz
Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Service Factor
1
Motor Efficiency Group
Energy Efficient
Motor Application
Crane
Base
Rigid
Phase
Three
Motor Frame Material
Cast Iron
Ins. Class
H
Motor Shaft Design
Keyed
No. of Speeds
1
Weight
531 lb
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
104 Degrees F
Conduit Box Position
F1, F2
Manufacturers Warranty
3 yr
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Full Load Current @ 60 Hz
100.0/50.0 A
Insulation Class
H
Shaft Design
Keyed
Maximum Operating Frequency
90 Hz
Product Type
Vector Motor
Frame Finish
Enamel-Coated
Efficiency Rating
NEMA Standard Efficiency
Inverter Rated
Inverter Rated
Maximum Speed
1,800 RPM
NEMA Design Class
A
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Blower Cooled
Nameplate Service Factor @ 60 Hz
1

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 40 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 100.0/50.0 A, 324TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
