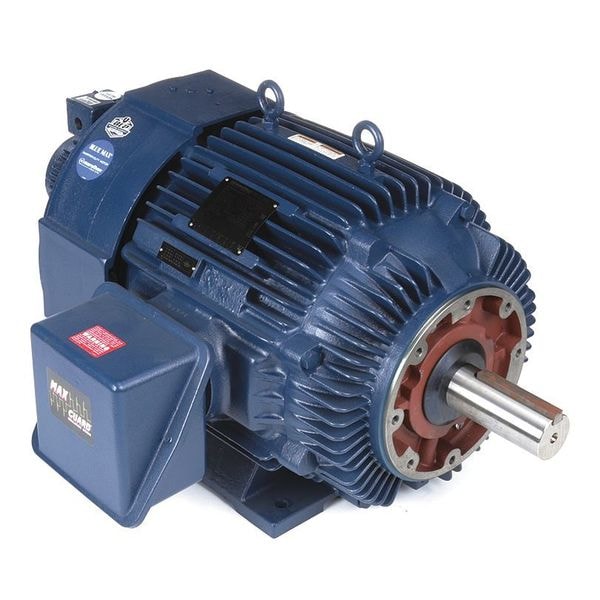

Vector Motor, 3-Phase, 60HP, 230/460V

  • Mfr # 404THFS8092
  • Zoro # G1968738
product price:
$
21,738.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
60
Nameplate RPM
1,180
Speed Range
2,000:1
Max. Speed
1,200 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
404THFS8092
Zoro #
G1968738
UPC #
-
Country of Origin
United States
Item
Vector Motor
Motor Design
Three-Phase
HP
60
Nameplate RPM
1,180
Speed Range
2,000:1
Max. Speed
1,200 RPM
Frame
404TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Warranty
3 yr
Motor Service Factor
1
RPM Range
1,101-1,200
Phase
Three
Hz
60 Hz
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Insulation Feature
Class F
Motor Shaft Rotation
CW/CCW
Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Application
Crane
Motor Bearings
Ball
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Ins. Class
H
NEMA Design
A
Encoder Acceptable
Yes
Max. Operating Frequency
90 Hz
Motor Mounting Type
Rigid Base
Motor Frame Material
Cast Iron
Nominal Efficiency
92.4 %
Full Load Amps
142.0/71.0 A
Encoder Shaft
1 in x 1-3/4 in
Finish
Enamel
Motor Shaft Design
Keyed
Motor Efficiency Group
Energy Efficient
Duty
Continuous
Ambient Temperature
40 Degrees C
Base
Rigid
Standards
CE, CSA, UL Recognized
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
Weight
1,339 lb
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
No. of Speeds
1
Conduit Box Position
F1, F2
Frequency
60 Hz
Bearing Type
Ball
Efficiency Rating
NEMA Standard Efficiency
Product Type
Vector Motor
Maximum Speed
1,200 RPM
Shaft Design
Keyed
Frame Finish
Enamel-Coated
Manufacturers Warranty
3 yr
Insulation Class
H
Maximum Operating Frequency
90 Hz
NEMA Design Class
A
Motor Enclosure Type
Totally Enclosed Blower Cooled
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
142.0/71.0 A
Inverter Rated
Inverter Rated

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 60 HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 142.0/71.0 A, 404TC Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
