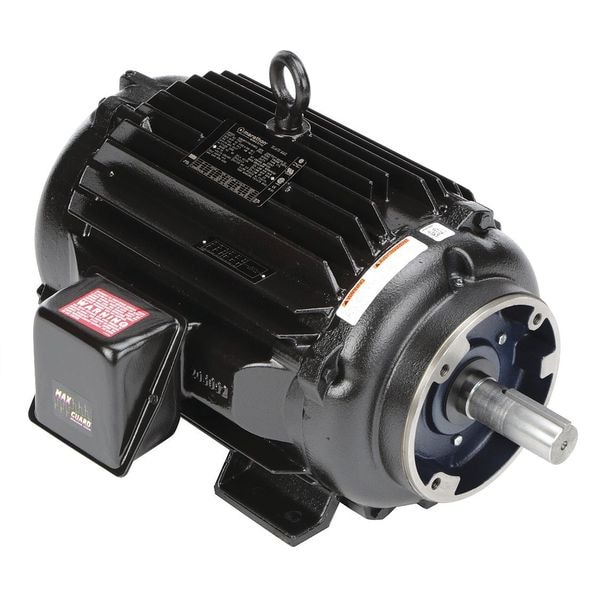

Vector Motor, 59.5 lb-ft, 20 HP, 230/460 V
Mfr # 256THTNA7026
Zoro # G3131265
product price:Â $4,485.00
/ea
Additional $195.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
HP
20
Torque
59.5 ft-lb
Nameplate RPM
1,770
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 256THTNA7026
- Zoro #
- G3131265
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 27 1/8 in
- Shaft Length
- 3 3/4 in
- Shaft Dia.
- 1 5/8 in
- Length Less Shaft
- 23 3/8 in
- Manufacturers Warranty Length
- 3 yr
- Encoder Shaft Dimensions
- 5/8 in x 1 3/4 in
- Encoder Shaft Diameter
- 5/8 in
- Encoder Shaft Length
- 1 3/4 in
- Frame Size
- 256TC
- Shaft Diameter
- 1 5/8 in
- Wire Rope Length
- 27 1/8 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 20 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 52.0/26.0 A, 256TC Frame, Torque 59.5 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
