Shop MARATHON

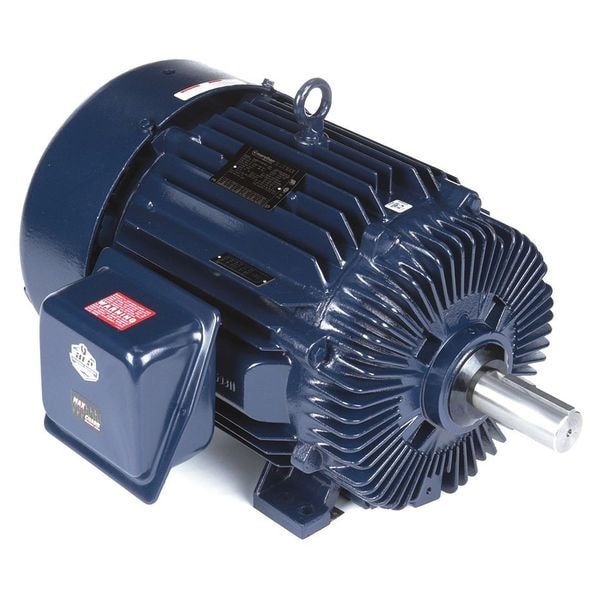

Vector Motor, 3-Phase, 50HP, 230/460V

  • Mfr # 326THFS8028
  • Zoro # G9922927
product price:
$
9,749.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
50
Nameplate RPM
1,780
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
326THFS8028
Zoro #
G9922927
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
2 1/8 in
Shaft Length
5 1/2 in
Overall Length
33 15/16 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Shaft Diameter
2 1/8 in
Encoder Shaft Diameter
1 in
Encoder Shaft Length
1 3/4 in
Frame Size
326T
Wire Rope Length
33 15/16 in
Length
33 15/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
50
Nameplate RPM
1,780
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
326T
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
NEMA Design
B
Duty
Continuous
Motor Frame Material
Cast Iron
Frame Material
Cast Iron
Encoder Acceptable
Yes
Motor Service Factor
1
Standards
CE, CSA, UL Recognized
Max. Operating Frequency
90 Hz
Hz
60 Hz
Full Load Amps
123.0/61.5 A
Finish
Enamel
RPM Range
1,701-1,800
Warranty
3 yr
Nominal Efficiency
93 %
Insulation Feature
Class F
Base
Rigid
Motor Mounting Type
Rigid Base
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Application
Crane
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Ins. Class
H
Motor Efficiency Group
Energy Efficient
Encoder Shaft
1 in x 1-3/4 in
Ambient Temperature
40 Degrees C
Phase
Three
Weight
765 lb
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Max. Ambient Temp.
104 Degrees F
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
123.0/61.5 A
NEMA Design Class
B
Product Type
Vector Motor
Shaft Design
Keyed
Bearing Type
Ball
Inverter Rated
Inverter Rated
Insulation Class
H
Ambient Temperature - Maximum
40 Degrees C
Frame Finish
Enamel-Coated
Efficiency Rating
NEMA Energy Efficient
Maximum Operating Frequency
90 Hz
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Fan Cooled
Maximum Speed
1,800 RPM
Manufacturers Warranty
3 yr

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 50 HP, Nameplate RPM 1,780, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 123.0/61.5 A, 326T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
