  6. 2" X 3/4" Non-Marking Rubber Thermoplastic Swivel Caster, Total Lock Brake, Loads Up To 110 lb
Medcaster 2" X 3/4" Non-Marking Rubber Thermoplastic Swivel Caster, Total Lock Brake, Loads Up To 110 lb RZ02TPN070TLTS06 - main

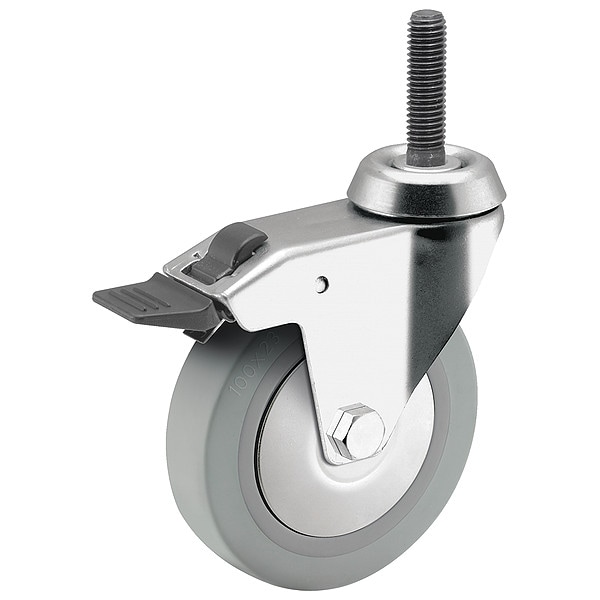

2" X 3/4" Non-Marking Rubber Thermoplastic Swivel Caster, Total Lock Brake, Loads Up To 110 lb

  • Mfr # RZ02TPN070TLTS06

  • Zoro # G8300034

product price:  $13.19
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Donut
Wheel Width
3/4 in
Mounting Height
70MM
Load Rating
110 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RZ02TPN070TLTS06
Zoro #
G8300034
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
3/4 in
Mounting Height
70MM
Stem Length
1 in
Thread Size
16NC
Overall Height
2 3/4 in
Stem Dia.
3/8 in
Caster Stem Size
1"-16 x 1 in
Wheel Dia.
2 in

Details

Item
Hospital Threaded Stem Caster W/ Total Lock Brake
Caster Stem Type
Threaded Stem
Tread Shape
Donut
Load Rating
110 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Rubber Thermoplastic (Grey)
Application
Chairs, Recliners, Homecare Beds, Bassinetes, Iv Stands, Laundry, Operating Tables
Non-Marking
Yes
Caster Brake Type
Total Lock Brake
Caster Frame Material
Steel
Wheel Bearing Type
Nylon
Wheel/Tread Hardness Rating
Soft
Number of Wheels
1
Number of Mounting Holes
None
Frame Color
Silver
Swivel Raceway Type
Double Ball
Series
Razor
Core Color
Gray
Operating Temperature Range
-30°F to 180°F
Frame Finish
Chrome Plated
Wheel Core Material
Polypropylene
Wheel/Tread Color
Gray
Caster Product Group
Swivel Caster
Swivel Lock Type
No Lock Included
Caster Mounting Type
Stem
Caster Sub-Type
Swivel
Wheel/Tread Hardness
85(+/-5)
Operating Temperature - Minimum
-30 Degrees F
Load Capacity - Maximum
110 lb
Operating Temperature - Maximum
180 Degrees F
Wheel Hardness Rating
65 Shore A

Description

Stem Caster, Swivel Caster, 110 lb Load Rating, 0 to 299 lb, 2 in Wheel Dia., 3/4 in Wheel Width, Rubber Wheel/Tread Material, 2 3/4 in Mounting Height, Ball, 1 In.-16 x 1 in Caster Stem Size, Threaded, Steel Caster Frame Material, Chrome Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
