  6. 6" X 1-1/4" Non-Marking Anti-Microbial Tpr Swivel Caster, No Brake, Loads Up To 260 lb

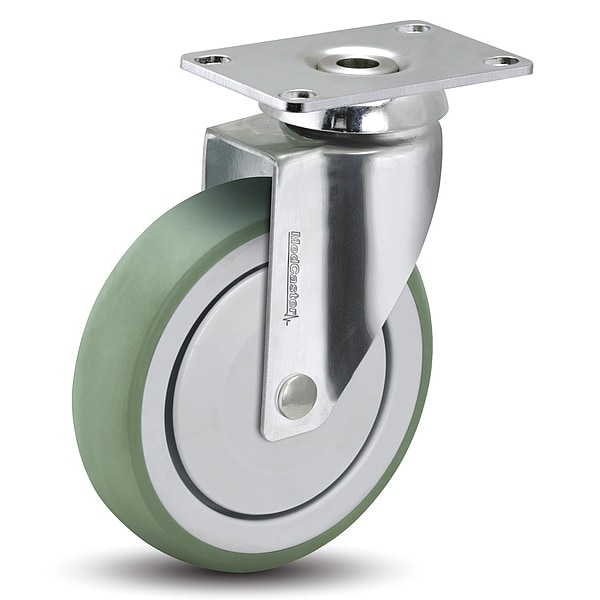

Medcaster 6" X 1-1/4" Non-Marking Anti-Microbial Tpr Swivel Caster, No Brake, Loads Up To 260 lb CH06AMP125SWTP01 - main

6" X 1-1/4" Non-Marking Anti-Microbial Tpr Swivel Caster, No Brake, Loads Up To 260 lb

  • Mfr # CH06AMP125SWTP01

  • Zoro # G7810549

product price:  $44.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Mounting Height
188MM
Load Rating
260 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CH06AMP125SWTP01
Zoro #
G7810549
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Mounting Height
188MM
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Wheel Width
1 1/4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Load Rating
260 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Caster Plate Hole Pattern
C
Caster Stem Type
Top Plate
Load Rating Range
0 to 299 lb
Operating Temperature Range
-30 Degrees to 210 Degrees F
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Non-Marking
Yes
Swivel Lock Type
No Lock Included
Core Color
Grey
Frame Finish
Chrome
Caster Brake Type
No Brake
Includes Thread Guards
Yes
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Series
CH
Application
Medical
Frame Color
Silver
Load Capacity - Maximum
260 lb

Description

Swivel, Plate Caster, Load Rating 260 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
