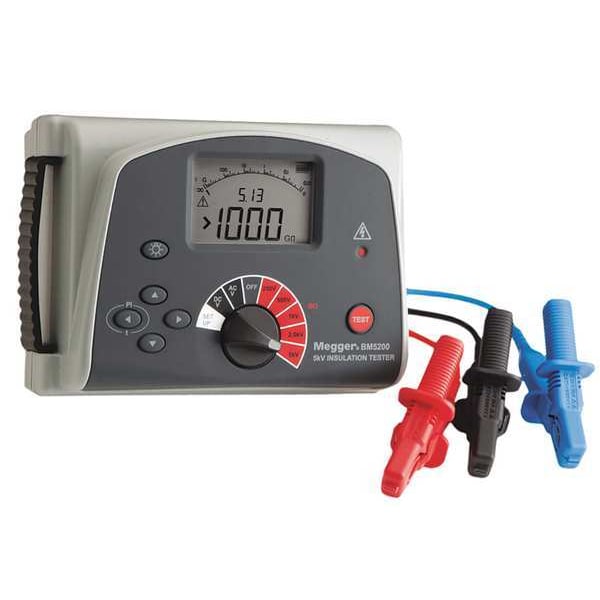

Megger Battery Operated Megohmmeter, 5000VDC BM5200 - main

Battery Operated Megohmmeter, 5000VDC

  • Mfr # BM5200

  • Zoro # G2676871

product price: $2,735.00
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Case, Leads, User Guide and Quick Start Guide
Insulation Resistance Range
100 kiloohm to 1 teraohm
Auto Power Off
Yes
Auto Ranging
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BM5200
Zoro #
G2676871
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
1 yr
Tool Width
4.5 in
Manufacturer Warranty Length
1 yr
Battery Size
AA
Tool Length
8.7 in
Tool Height
6.4 in

Details

Item
Megohmmeter
Power Source
Battery
Includes
Case, Leads, User Guide and Quick Start Guide
Insulation Resistance Range
100 kiloohm to 1 teraohm
Auto Power Off
Yes
Auto Ranging
Yes
Features
Guard Terminal to Shunt Surface Leakage Currents, Insulation (InS), Polarization Index (PI) and Variable Timed Test (t) Modes
Safety Rating
CAT III 600V
Live Circuit Detection
Yes
Accuracy
+/-5%
Display
Digital/Analog LCD
Output Test Voltage
250/500/1000/2500/5000V DC
Calibration Certificate
Not Included
Display Screen Type
LCD
Bluetooth Compatible
No
Maximum Operating Temperature
131 Degrees F
Number of Batteries Required
8
CAT Safety Rating
CAT III 600V
Timed Ramp Voltage Test
No
Parameters Measured
Resistance
Minimum Insulation Resistance
100 kiloohm
Test Voltage
1,000V DC, 2,500V DC, 250V DC, 5,000V DC, 500V DC
Includes Batteries
Yes
Pass/Fail Selection Limits
Yes
Greater Than 30V Warning
Yes
Maximum DC Voltage Measured
25 V
Testing Functions
Insulation
Live Circuit Voltage
Upto 600V AC/DC
Minimum AC Voltage Measured
25 V
Insulation Resistance Resolution
100 kilohm to 1,000 gigaohm
Insulation Limit Alarm
Yes
Minimum DC Voltage Measured
25 V
Maximum Insulation Resistance
1 teraohm
Standards
IEC 61326
Resistance Accuracy
+/-5.00%
PI/DAR Testing
No
Maximum AC Voltage Measured
600 V
Operating Voltage
600V AC/DC
Battery Chemistry
Alkaline
Remote Test Probe Included
No
IP Rating
IP40
Test Current
1.4 mA
Minimum Operating Temperature
-4 Degrees F
Waterproof
No
Capacitance Auto Discharge
Yes
Backlit Digital Display
No
Dustproof
No
USB Data Download Included
No
Display Type
Digital
Maximum Operating Temperature
131 Degrees F

Description

Megohmmeter, Backlit Digital Display No, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Insulation Limit Alarm Yes, Maximum Insulation Resistance 1 teraohm, Minimum Insulation Resistance 100 kiloohm, PI/DAR Testing No, Parameters Measured Insulation Resistance, Pass/Fail Selection Limits Yes, Power Source Battery, Remote Test Probe Included No
