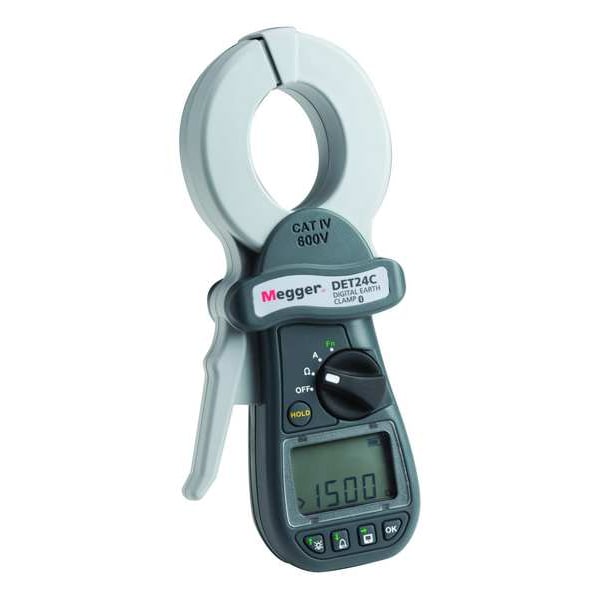

Megger Clamp On Earth Tester, 1390 Hz DET24C - main

Clamp On Earth Tester, 1390 Hz

  • Mfr # DET24C

  • Zoro # G3710038

product price:  $2,863.99
/ea
Free Shipping & Returns

Key Features

Ground Resistance Range
0.050 to 1500 ohm
Resolution
0.01 ohm
Operating Frequency
1,390 Hz
Data Logging
2000 Records
Jaw Capacity
1.5 in (39mm)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DET24C
Zoro #
G3710038
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Details

Item
Clamp On Earth Resistance Tester
Ground Resistance Range
0.050 to 1500 ohm
Resolution
0.01 ohm
Operating Frequency
1,390 Hz
Data Logging
2000 Records
Jaw Capacity
1.5 in (39mm)
Counts
2000
Current Measurement Range
0.5 mA rms to 35 A rms
Interface
Digital with Bluetooth
Battery Type
(1) 1.5V AA Alkaline
Auto Power Off
Yes
Includes
Calibration Check 1001-498, Carrying Case, Carrying Strap (Wrist Loop) 1001-716
Resistance Accuracy
+/-1.5%
Display
Digital LCD
Safety Rating
Cat IV 600V
Communication Protocol
Bluetooth
Leakage Current Range
0.5 mA to 35 A
Number of Records Stored
2,000
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
122 Degrees F
Bluetooth Compatible
Yes
Dustproof
Yes
Calibration Certificate
Available Separately
Calibration Certificate Included
No Certification Included
Data Logger
Yes
Features
Balance Elements of a Ground to Mitigate Noise, Balance Ground Circuits, Elliptical Clamp Shape Improves Access to Earth Cables and Straps upto 50 mm, Low Maintenance Flat Jaw Interface, Measure Continuity of Ground Circuits in Headends and Hubs
CAT Safety Rating
CAT IV 600V
Test Current
3 A
Tester Type
Clamp-On Ground Resistance Tester
Display Screen Type
LCD with Backlight
Data Output Type
Bluetooth
Leakage Current Measurement - Minimum
0.5 mA
Power Source
Battery
Maximum Ground Resistance Measurement
1,500 ohm
Resistance Testing Functions
AC Current, Ground Loop Resistance
IP Rating
IP30
Test Voltage
25 V, 50 V
Includes Batteries
Batteries Included
Leakage Current Measurement - Maximum
35 A

Description

Clamp On Earth Resistance Tester, Bluetooth Compatible Yes, Calibration Certificate Available Separately, Dustproof Yes, Jaw Capacity 1.5 in (39mm), Leakage Current Range 0.5 mA to 35 A, Number of Records Stored 2,000, Resistance Accuracy +/-1.5 Percent +/-0.05 ohm, Communication Protocol Bluetooth, Includes Batteries, Calibration Standard, Case, Cert
