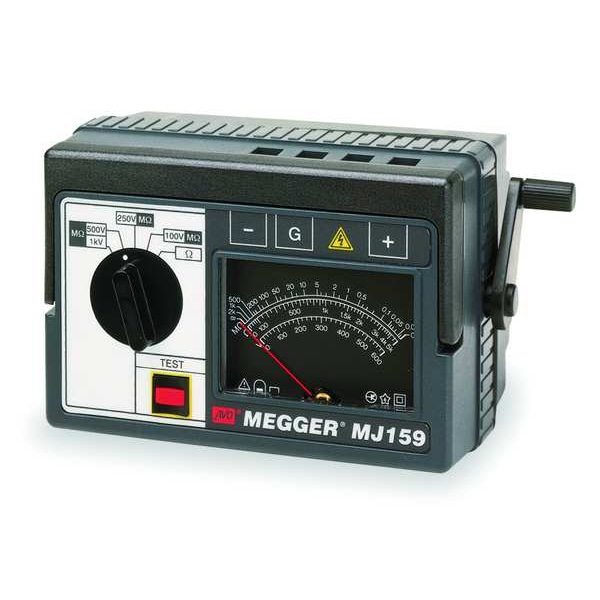

Megger Hand Cranked Megohmmeter, 1000VDC MJ159 - main

Hand Cranked Megohmmeter, 1000VDC

  • Mfr # MJ159

  • Zoro # G0614056

product price: $1,914.99
/ea
Free Shipping & Returns

Key Features

Power Source
Hand Crank
Includes
Carrying Case, Power Cord, Test Lead Set ((3) Leads, (3) Prods, (3) Clips), (5) Test Record Cards
Insulation Resistance Range
0 ohm to 2 gigohm
Resistance Range
5000 ohm
Output Test Voltage
100/250/500/1000V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MJ159
Zoro #
G0614056
UPC #
-
Country of Origin
United Kingdom

Dimensions

Tool Width
5 in
Tool Height
8.3 in

Details

Item
Megohmmeter
Power Source
Hand Crank
Includes
Carrying Case, Power Cord, Test Lead Set ((3) Leads, (3) Prods, (3) Clips), (5) Test Record Cards
Insulation Resistance Range
0 ohm to 2 gigohm
Resistance Range
5000 ohm
Output Test Voltage
100/250/500/1000V DC
Display
Analog
Accuracy
+/-1.25% of Scale Length
Features
Guard Terminal to Eliminate Surface Leakage Current, Multiple Test Voltages for Spot and Step Voltage Testing, No Scale Multipliers
Live Circuit Detection
0 to 600V AC/V DC
Auto Ranging
Yes
Calibration Certificate
Not Included
Bluetooth Compatible
No
Display Screen Type
No Display
USB Data Download Included
No
Minimum Insulation Resistance
0 ohm
Parameters Measured
Resistance
Minimum Operating Temperature
14 Degrees F
Live Circuit Voltage
20 to 600V AC
Maximum Insulation Resistance
2 gigohm
Greater Than 30V Warning
No
CAT Safety Rating
CAT II 300V
Remote Test Probe Included
No
Insulation Limit Alarm
Yes
Timed Ramp Voltage Test
No
Insulation Resistance Resolution
0 to 2,000 megaohm
Minimum AC Voltage Measured
20 V
Waterproof
No
Operating Voltage
600V AC
Standards
IEC 61326-1
Pass/Fail Selection Limits
No
PI/DAR Testing
No
Testing Functions
Insulation
Test Current
2 mA
Maximum Operating Temperature
122 Degrees F
Test Voltage
1,000V DC, 100V DC, 250V DC, 500V DC
Maximum AC Voltage Measured
600 V
Dustproof
No
Backlit Digital Display
No
Display Type
Analog
Resistance Accuracy
+/-1.25% of FSD
Capacitance Auto Discharge
Yes
Maximum Operating Temperature
122 Degrees F

Description

Megohmmeter, Backlit Digital Display No, Bluetooth Compatible No, CAT Safety Rating CAT III, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Analog, Dustproof No, Greater Than 30V Warning No, Includes Carrying Case, Power Cord, Test Lead Set ((3) Leads, (3) Prods, (3) Clips), (5) Test Record Cards, Insulation Limit Alarm Yes, Maximum Insulation Resistance 2 gigohm, Minimum Insulation Resistance 0 ohm, PI/DAR Testing No
