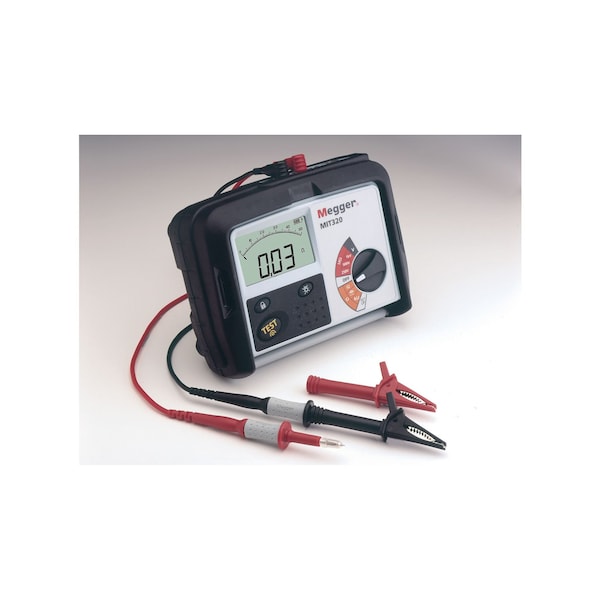

Megger Tester, 5.7 in Tool L. MIT320 - main

Tester, 5.7 in Tool L.

  • Mfr # MIT320

  • Zoro # G713990725

product price:  $1,066.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Battery
Manufacturer Warranty Length
3 yr
Maximum Insulation Resistance
999 megaohm
IP Rating
IP54
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MIT320
Zoro #
G713990725
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturer Warranty Length
3 yr
Tool Length
5.7 in
Battery Size
AA
Test Lead Length
1.8 m
Tool Width
3.2 in
Tool Height
8 in

Details

Item
Tester
Power Source
Battery
Includes
Battery
Maximum Insulation Resistance
999 megaohm
IP Rating
IP54
Minimum AC Voltage Measured
0 V
Minimum Insulation Resistance
10 ohm
Test Current
1 mA
Includes Batteries
Yes
Resistance Accuracy
+/-5% +/-2 Digits up to 100 kiloohm
Communication Protocol
USB
Calibration Certificate
Included
Maximum DC Voltage Measured
600 V
Display Type
Analog, Digital
Auto Power Off
Yes
Features
Intelligent Safety System for Protection, Live Circuit Warning, Self Contained Protective Cover, Tough Rubber Armored Case
Auto Ranging
Yes
Parameters Measured
Continuity, Insulation Resistance
Battery Chemistry
Alkaline
Test Voltage
250V DC, 500V DC
Greater Than 30V Warning
Yes
CAT Safety Rating
CAT III 600V
USB Data Download Included
Yes
Testing Functions
Continuity, Insulation Resistance
Remote Test Probe Included
No
Includes Software
Yes
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
60 Degrees C
Standards
IEC 61010-1, IEE Wiring Regulations
Minimum DC Voltage Measured
0 V
Maximum AC Voltage Measured
600 V
Number of Batteries Required
8
Waterproof
Yes
Bluetooth Compatible
No
Dustproof
Yes
Pass/Fail Selection Limits
No
Backlit Digital Display
Yes
Insulation Limit Alarm
Yes
PI/DAR Testing
No
Timed Ramp Voltage Test
No
Capacitance Auto Discharge
Yes
Display Screen Type
LCD
Instrument Style
Handheld
Leakage Current Range
205 mA +10 mA to 5 mA
Calibration Certificate Included
Traceable without Data
Alert Type
Digital Display, Audible
Live Circuit Voltage Measurement - Minimum
5 V
Number of Records Stored
1,000
Installation Tester Socket Region
EU, US
Data Output Type
USB
Live Circuit Voltage Measurement - Maximum
600 V AC/DC

Description

Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate Included, Capacitance Auto Discharge Yes, Display Type Analog, Digital, Dustproof Yes, Greater Than 30V Warning Yes, Includes Battery, Insulation Limit Alarm Yes, Maximum Insulation Resistance 999 megaohm, Minimum Insulation Resistance 10 ohm, PI/DAR Testing No, Parameters Measured Continuity, Insulation Resistance, Pass/Fail Selection Limits No, Power Source Battery
