CAD Drawings
Download CAD Files

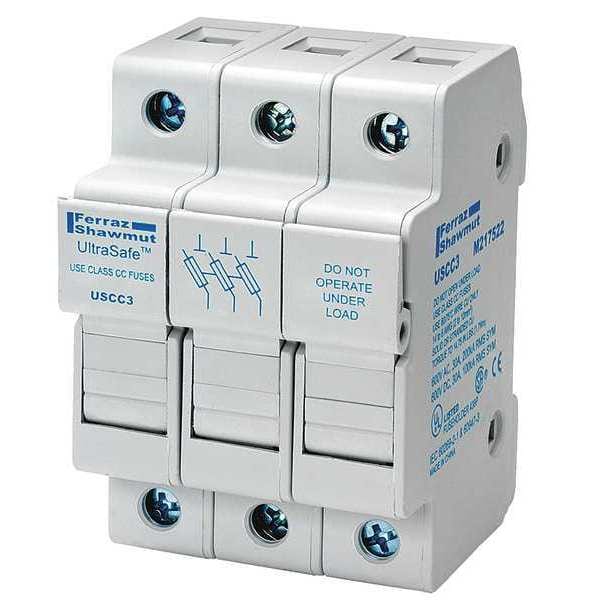

Finger Safe Fuse Block, CC UL Class, 600V AC/DC Volt Rating, 3 Poles, Pressure Plate
Mfr # USCC3
Zoro # G1833273
CAD Available
product price: $44.34
/eaKey Features
CAD Drawing
UL Class
CC
Series
USCC
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
USCC3
Zoro #
G1833273
UPC #
-
Country of Origin
China
Dimensions
Width
2.07 in
Height
2.32 in
Length
3.07 in
For Fuse Size
1-1/2 in L x 13/32 in dia
Overall Length
3.07 in
Overall Height
2.32 in
Overall Width
2.07 in
Wire Size - Maximum
6 AWG
Wire Size - Minimum
14 AWG
Wire Size
14 to 6 AWG
Description
Fuse Block, Fits Fuse Type Class CC, Fuse UL Class CC, 0 to 30 A, Number of Poles 3, 600V AC/DC, For Fuse Size 1-1/2 in L x 13/32 in dia, Compatible Fuse Series ATDR, ATMR, ATQR, CCMR, FNQ-R, KLDR, KLKR, KTK-R, LP-CC, Series USCC, Non-Indicating, Rejection, Fuse Block Design Finger-Safe, Wire Range 14 to 6 AWG, Mounting Style DIN Rail, Body Material Polyamide, Connector Type Pressure Plate, Height 2.32 in, Width 2.07 in, Length 3.07 in, Standards CSA Certified, UL Listed
