Shop MERSEN

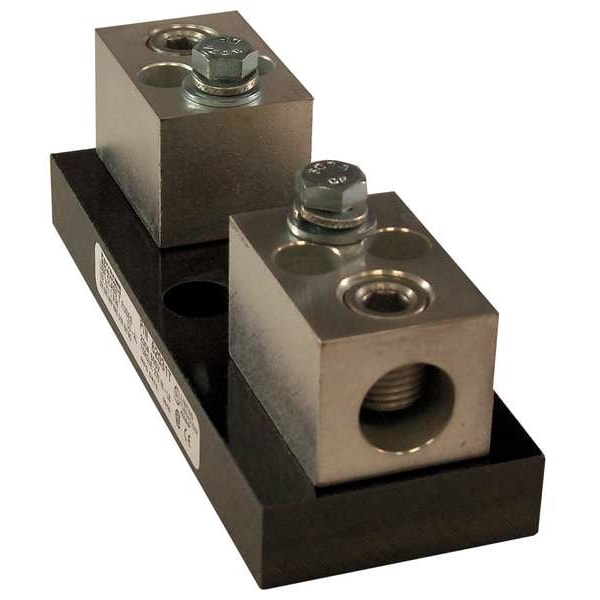

Open Fuse Block, 101 to 200A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 62031T
  • Zoro # G2484115
product price:
$
117.99
/ea
Free Shipping & Returns

Key Features

UL Class
T
Series
6TFB
Voltage Rating
600V AC, 600V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
62031T
Zoro #
G2484115
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
T
Series
6TFB
Number of Poles
1
Amp Range
101 to 200A
Voltage Rating
600V AC, 600V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Phenolic
Features
Adder Block Design
For Fuse Series
A6T
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
Wire Range
6 AWG to 350 MCM
Fits Fuse Type
Class T
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Fuse Installation Method
Clip-in
Fits Fuse Block Style
Non-Rejection
Fuse Block or Holder DC Voltage Rating
600VDC
Fuse Block or Holder AC Voltage Rating
600VAC
Current - Minimum
101 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Maximum
200 A

Dimensions

Height
2-1/2 in
Width
2-1/4 in
Length
6 in
For Fuse Size
3-1/4 in L x 1-1/16 in dia, 3-1/4 in L x 7/8 in dia
Mounting Hole Dia.
0.19 in
Wire Size - Minimum
6 AWG
Overall Length
4.78 in
Wire Size - Maximum
350 kcmil
Overall Height
2 in
Overall Width
4.38 in
Wire Rope Length
4.78 in
Fits Chest Size
Adder Block Design

Description

Fuse Block, Fits Fuse Type Class T, Fuse UL Class T, 101 to 200 A, Number of Poles 1, 600V AC/DC, For Fuse Size 3 1/4 in L x 1 1/16 in dia, 3 1/4 in L x 7/8 in dia, Compatible Fuse Series A6T; JJS; JLLS; LPT, Series 6TFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 AWG to 350 MCM, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 2 in, Width 4.38 in, Length 4.78 in, Spring Reinforced Clip Yes, Features Adder Block Design
