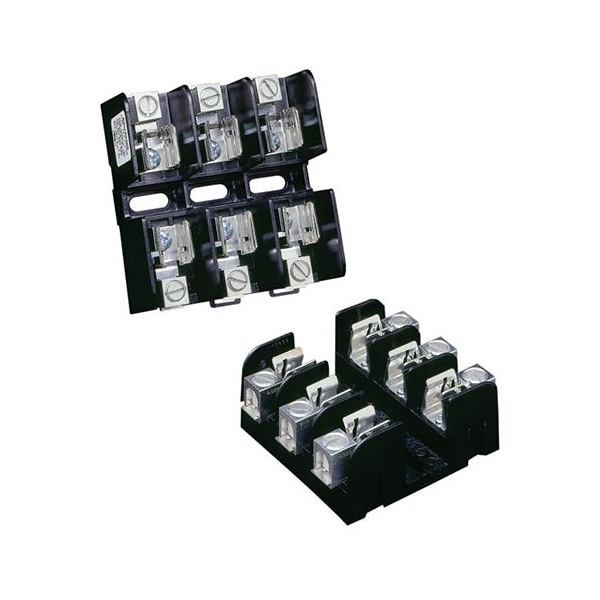

Open Fuse Block, 3 Poles, 750V AC/DC Volt Rating
Mfr # 70308
Zoro # G9034967
product price:Â $64.29
/eaKey Features
Number of Poles
3
Voltage Rating
750V AC/DC
Connector Type
Box Lug
Mounting Style
Screw
Spring Reinforced Clip
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 70308
- Zoro #
- G9034967
- UPC #
- 782001754266
- Country of Origin
- Mexico
Dimensions
- Length
- 3 in
- Height
- 1.37 in
- Width
- 3 in
- For Fuse Size
- 51 mm L x 14 mm dia or 58 mm L x 22 mm dia
- Mounting Hole Dia.
- 0.19 in
Details
- Item
- Open Fuse Block
- Number of Poles
- 3
- Voltage Rating
- 750V AC/DC
- Connector Type
- Box Lug
- Mounting Style
- Screw
- Spring Reinforced Clip
- Yes
- Fuse Block Design
- Open
- Body Material
- Thermoplastic
- Fuse Type
- 750V Open Style Semiconductor Fuseholders - IEC Cylindrical 14x51mm
- Frequency Range (Hz)
- 50/60 Hz
- Max. Operating Temp.
- 80 deg C
- Short Circuit Current (KA)
- 200 kA
- Torque Rating
- 35 lb-in
- Fuse Installation Method
- Clip-in
- APPROVALS & STANDARDS
- UL Recognized component guide IZLT2, File E52283; CSA Certified class 6225, File 32169
- DC Voltage Rating
- 750V DC
- AC Voltage Rating
- 750V AC
Description
SC FUSE BLOCK 750V 30A 3P BXR
