  9. Open Fuse Block, 61 to 100A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

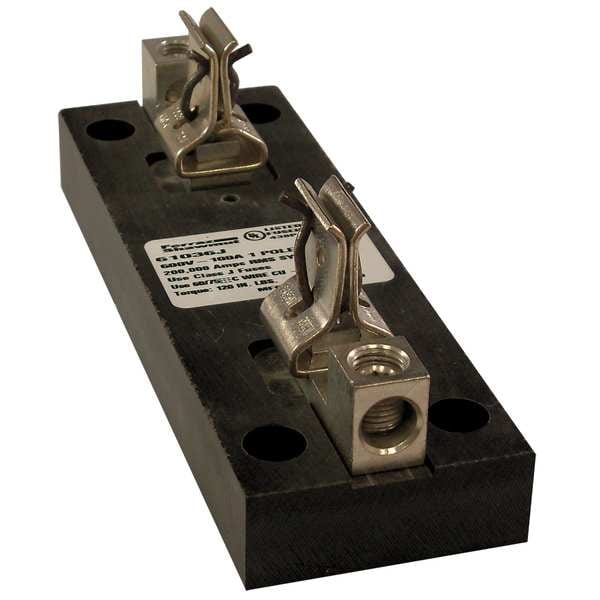

Mersen Open Fuse Block, 61 to 100A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug 61036J - main

Open Fuse Block, 61 to 100A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 61036J

  • Zoro # G3404107

product price: $37.71
/ea

Key Features

UL Class
J
Series
JFB
Number of Poles
1
Amp Range
61 to 100A
Voltage Rating
600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
61036J
Zoro #
G3404107
UPC #
782001665197
Country of Origin
Mexico

Dimensions

Length
7 in
Width
2.31 in
Height
2.36 in
For Fuse Size
4-5/8 in L x 1-1/8 in dia
Overall Length
7 in
Overall Width
2.31 in
Wire Size - Maximum
2/0 AWG
Overall Height
2.36 in
Wire Size - Minimum
6 AWG
Wire Size
6 to 2/0 AWG

Details

Item
Open Fuse Block
UL Class
J
Series
JFB
Number of Poles
1
Amp Range
61 to 100A
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Polyester
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
For Fuse Series
AJT, A4J, HSJ
Features
Space Saver
Fuse Holder Code
AB
Wire Range
6 AWG to 2 AWG
Fits Fuse Type
Class J
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Short Circuit Current (KA)
200 kA
Fits Fuse Block Style
Non-Rejection
Fuse Installation Method
Clip-in
Installation Mounting
Direct Screw Mount
Short Description
Fuse Bases 600V 100A Class J 1-pole Tin-Plate Aluminum Copper Box
Short Circuit Current Rating (SCCR)
200
Rated Torque (In.-Lb.)
50 lb-in
Max Fuse Rating
100 A
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
AC Voltage Rating
600 V AC
Current - Minimum
61 A
Current - Maximum
100 A
DC Voltage Rating
600 V DC

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 61 to 100 A, Number of Poles 1, 600V AC/DC, For Fuse Size 4 5/8 in L x 1 1/8 in dia, Compatible Fuse Series A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I, Series JFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 to 2/0 AWG, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 2.36 in, Width 2.31 in, Length 7 in, Spring Reinforced Clip Yes, Features Space Saver
