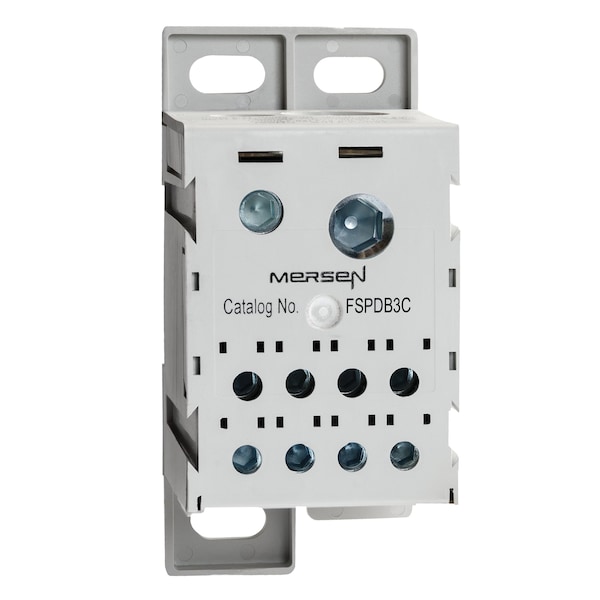

Power Distribution Block, Finger-Safe, 1 Pole, 310 A Copper, 1,500 V DC, DIN Rail, Screw

  • Mfr # FSPDB3C

  • Zoro # G0833631

product price:
$
196.99
/ea
Sold in multiples of 3 for $590.97
Free Shipping & Returns

Key Features

Power Distribution Block Design
Finger-Safe
Maximum Current - Copper Conductor
310 A
Maximum Voltage
1,500 V DC
Number of Poles
1
Line Connections/Pole
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FSPDB3C
Zoro #
G0833631
UPC #
-
Country of Origin
Mexico

Dimensions

Hole Diameter (Primary)
2 in
Hole Diameter (Secondary)
0.31 in
Product Height
2.53 in
For Line Aluminum Wire Size - Maximum
2/0 AWG, 350 kcmil
For Line Copper Wire Size - Maximum
350 kcmil
For Line Aluminum Wire Size - Minimum
14 AWG
For Load Copper Wire Size - Maximum
2 AWG
For Load Aluminum Wire Size - Maximum
2 AWG
For Line Copper Wire Size - Minimum
14 AWG
For Load Aluminum Wire Size - Minimum
14 AWG
For Load Copper Wire Size - Minimum
14 AWG
Overall Depth
64.3 mm
Overall Length
100.8 mm
Overall Width
47 mm
Wire Rope Length
100.8 mm
Length
100.8 mm

Details

Item
Power Distribution Block
Power Distribution Block Design
Finger-Safe
Maximum Current - Copper Conductor
310 A
Maximum Voltage
1,500 V DC
Number of Poles
1
Line Connections/Pole
2
Load Connections/Pole
8
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Housing Material
Nylon
Maximum Operating Temperature
80 Degrees C
Mounting Type
DIN Rail, Screw
Standards
CE Component IEC, CSA Class 6228, IEC-947-7-1, 529, 68-2-6, UL 1059
Includes
Cap plugs; Circuit identification markers; End anchors
Number of Openings per Pole (Primary)
2
Short Circuit Rating (Standalone)
10 kA
Number of Openings per Pole (Secondary)
8
Short Circuit Rating (Class RK1)
400 kA
Short Circuit Rating (Class L)
0 kA
Short Circuit Rating (Class CC)
30 kA
Short Circuit Rating (Class G)
60 kA
Short Circuit Rating (Class T)
400 kA
Torque Rating (Secondary)
#2-#6 80; #8-#14 35
Short Circuit Rating (Class J)
400 kA
Torque Rating (Primary)
350-3/0 200; 2/0-#1 100; #2-#6 80; #8-#14 35
APPLICATIONS
Splicing cables; Splitting primary power into a variety of secondary circuits; Providing a fixed junction tap-off point
Short Circuit Rating (Class RK5)
200 kA
UL 94 Flammability Rating
V-0
Maximum Current - Aluminum Conductor
310 A
Special Features
FSPDBs Provide a Safe, Convenient Way of Splicing Cables, Splitting Primary Power into a Variety of Secondary Circuits or Providing a Fixed Junction Tap-Off Point
For Conductor Material
Copper
Secondary Wire Range
#2-#14
Primary Wire Range
2/0-#14, 350 mcm

Description

Power Distribution Block, For Conductor Material Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 2 AWG, For Line Copper Wire Size - Maximum 14 AWG, Load Connections/Pole 8, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,500 V, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 64.3 mm
