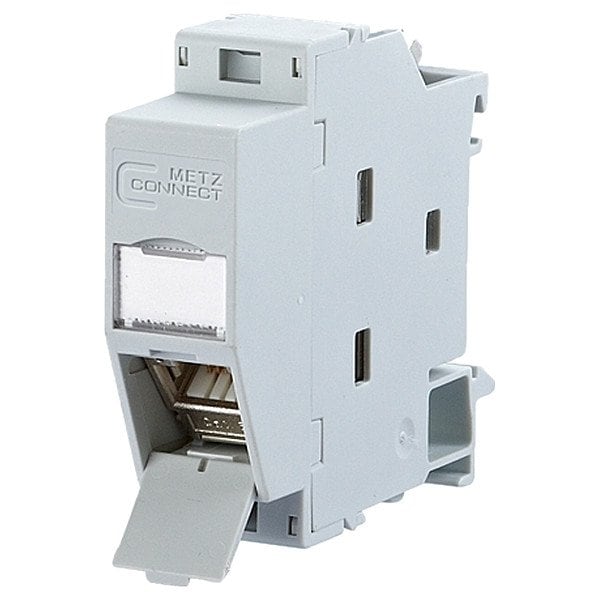

Rail-Mount Module, Light Gray, Poles 8
- Mfr # 130B117003-E
- Zoro # G408655854
product price:Â
$
35.19
/ea
Key Features
Wire Size
26/1 to 22/1 AWG (Solid), 26/7 to 22/7 AWG (Stranded)
Standards
ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
Shielded
Yes
Maximum Operating Temperature
158 Degrees F
Connector Color
Light Gray
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 130B117003-E
- Zoro #
- G408655854
- UPC #
- 4250184136545
- Country of Origin
- Germany
Dimensions
- Wire Size
- 26/1 to 22/1 AWG (Solid), 26/7 to 22/7 AWG (Stranded)
Details
- Item
- Rail-Mount Module
- Standards
- ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
- Shielded
- Yes
- Maximum Operating Temperature
- 158 Degrees F
- Connector Color
- Light Gray
- Performance Category
- Cat6A
- Housing Material
- Zinc Die-Cast
- Application
- Data, HDBaseT, Power
- Connector Gender
- Female
- Data Rate
- 10 Gbits
- IP Rating
- IP20
- Connection Type
- Insulation Displacement
- Minimum Operating Temperature
- -40 Degrees F
- Number of Poles
- 8
- Current Rating
- 1 A
- Connector Orientation
- 45 Degrees Angled
Description
Rail-Mount Module, Application Data, HDBaseT, Power, Connection Type Insulation Displacement, Connector Color Light Gray, Connector Gender Female, Connector Orientation 45 Degrees Angled, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, IP Rating IP20, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6A, Shielded Yes
