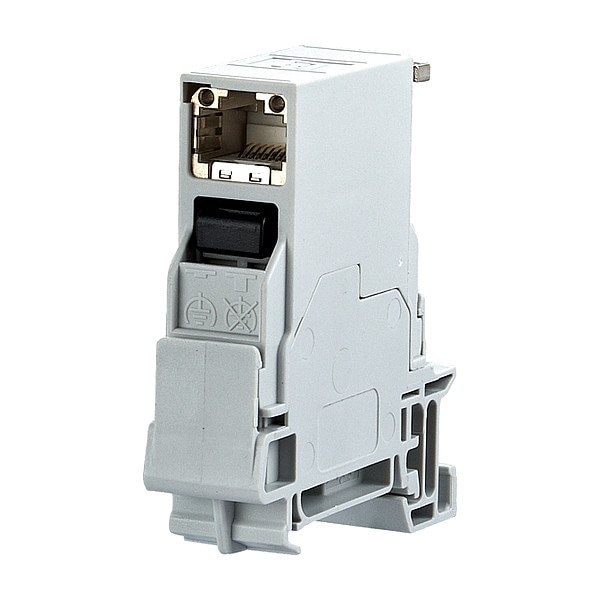

Terminal Rail Insert, Light Gray, Poles 8
Mfr # 1401906113KE
Zoro # G508655822
product price:Â $42.39
/eaKey Features
Standards
DIN EN 50173-1, ISO/IEC 11801
Wire Size
24/1 to 22/1 AWG, 26 AWG/7 AWG
Current Rating
1 A
Connector Gender
Female
Performance Category
Cat6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
1401906113KE
Zoro #
G508655822
UPC #
4250184119166
Country of Origin
Germany
Dimensions
Wire Size
24/1 to 22/1 AWG, 26 AWG/7 AWG
Details
Item
Terminal Rail Insert
Standards
DIN EN 50173-1, ISO/IEC 11801
Current Rating
1 A
Connector Gender
Female
Performance Category
Cat6
Data Rate
10 Gbits
Maximum Operating Temperature
158 Degrees F
Application
Data, HDBaseT, Power
Connector Color
Light Gray
Connection Type
Insulation Displacement
Connector Orientation
90 Degrees Angled
Shielded
Yes
Number of Poles
8
Housing Material
Zinc Die-Cast
Minimum Operating Temperature
-40 Degrees F
Description
Terminal Rail Insert, Application Data, HDBaseT, Power, Connection Type Insulation Displacement, Connector Color Light Gray, Connector Gender Female, Connector Orientation 90 Degrees Angled, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6, Shielded Yes, Standards DIN EN 50173-1, ISO/IEC 11801
