Shop MEZIERE

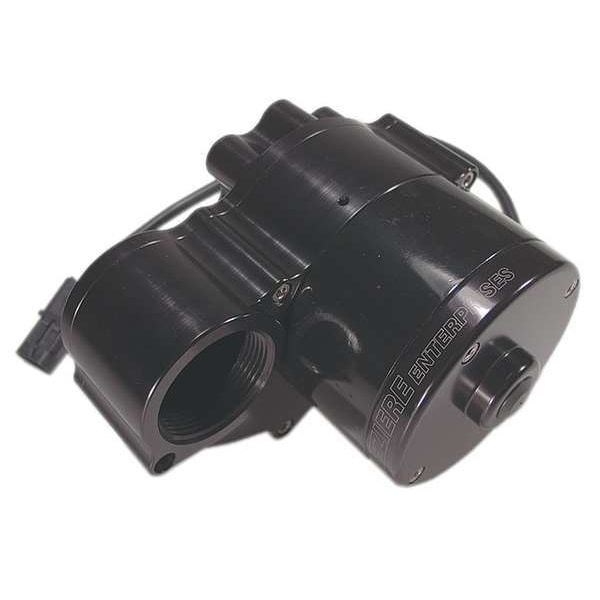

Aluminum 5/16 HP Centrifugal Pump 12V

  • Mfr # WPX753
  • Zoro # G4525516
product price:
$
580.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
5/16 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WPX753
Zoro #
G4525516
UPC #
-
Country of Origin
United States
HP - Pumps
5/16 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Max. Pressure - Pumps
35 psi
Max. Head
12 1/5 ft
Motor Enclosure - Pumps
Open Dripproof
Impeller Material
Aluminum
Housing Material
Aluminum
Max. GPM @ Head
42 @ 2.3 ft
Best Efficiency Range GPM @ Head
15 to 25 gpm @ 9.70 to 6 ft
Min. GPM @ Head
15 @ 9.7 ft
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Inlet Pressure
30 psi
GPM of Water @ 70 Ft. of Head
0
GPM @ 7 Feet of Head
22.5
Seal Material
Carbon, Ceramic
GPM of Water @ 25 Ft. of Head
0
GPM of Water @ 0 Ft. of Head
55
GPM of Water @ 40 Ft. of Head
0
GPM of Water @ 60 Ft. of Head
0
GPM of Water @ 50 Ft. of Head
0
Outlet
1-1/2" NPT
Amps
4/9.5
GPM @ 1 Ft. of Head
49
Phase
Single
Impeller Type
Open
Wetted Materials
Aluminum, Anodized Aluminum, Carbon/Ceramic, Stainless Steel, Stainless Steel Bearing
Inlet
1-1/2" NPT
Item
Vehicle Pump
Bearing Type
Ball
GPM of Water @ 10 Ft. of Head
15
GPM of Water @ 5 Ft. of Head
28
Max. Case Pressure
35 psi
Max. Pressure
35 psi
GPM of Water @ 20 Ft. of Head
0
GPM of Water @ 15 Ft. of Head
0
HP
5/16
Max. Liquid Temp.
250 Degrees F
GPM of Water @ 30 Ft. of Head
0
Max. Specific Gravity
1.16
Duty
Continuous
Motor RPM
2200
GPH of Water @ 5 Ft. of Head
27.5
Motor Enclosure
Open Drip Proof
GPM of Water @ 80 Ft. of Head
0
Motor Type
Brushed
Best Efficiency GPM @ Head
20 gpm @ 8 ft
Voltage
12V DC
Pump Housing Material
Aluminum
Horsepower
5/16 hp
Best Efficiency Flow
20 gpm
Nameplate Voltage
12V DC
Duty Cycle
Continuous
Intake Type
NPT
Flow Rate @ 5 ft of Head (Maximum)
28 gpm
Seal Type
Double Lip
NPSHr
69.3 ft
Discharge Type
NPT
Features
Double-Lip Seal, Preset Pressure Relief Valve and a Steel Gerotor
Best Efficiency Head
8 ft
Impeller Design
Open
Shut Off Pressure (Maximum)
35 psi
Flow Rate @ 10 ft of Head (Maximum)
15 gpm
Priming
Manual
Specific Gravity (Maximum)
1.16
Shaft Material
Stainless Steel
Maximum Feet of Head
12.2 ft
Wetted Material
Aluminum, Carbon, Ceramic, Stainless Steel
Flow Rate @ 1 ft of Head (Maximum)
49 gpm
For Use With Potable Systems
No
Maximum RPM
2,200 RPM
Volute Material
Aluminum
Flow Rate (Maximum)
55 gpm
Drive Coupling Type
Rigid Coupling
Media Temperature - Maximum
250 Degrees F
Hazardous Location Class
Not Rated
Shaft Seal Material
Carbon/Ceramic
Inlet Orientation
Side
Pumping Application
Cooling and Heat Transfer
Flow Rate @ 10 ft of Head - Maximum
15 gpm
Shaft Seal Type
Lip
Motor Speed - Maximum
2,200 RPM
Thermal Overload Protection
No
Media Temperature - Minimum
35 Degrees F
Discharge Rotation Increments
0 Degrees
Feet of Head (Maximum)
12 ft
Discharge Orientation
Side
Chemical Compatibility
Water, Water-Glycol
Pump Design
Inline
Full Load Current
11.5 A
Number of Stages
1
Case Pressure - Maximum
40 psia

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/2 in NPT
Length
4.8 in
Manufacturers Warranty Length
1 yr
Height
6 5/16 in
Width
5 1/2 in
Compatible Discharge Pipe Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Overall Height
6.3 in
Overall Length
4.8 in
Overall Width
5.5 in
Cord Length
12 in
Impeller Diameter
2 29/32 in
Discharge Diameter
1 1/2 in
Inlet Diameter
1 1/2 in
Shaft Outer Diameter
47/100 in
Wire Rope Length
4.8 in
Fits Chest Size
Double-Lip Seal, Preset Pressure Relief Valve and a Steel Gerotor

Description

Vehicle Pump, Phase Single, Pump Housing Material Aluminum, Horsepower 5/16 hp, Nameplate Voltage 12V DC, Maximum Feet of Head 12.2 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 5 ft of Head (Maximum) 28 gpm, Flow Rate @ 10 ft of Head (Maximum) 15 gpm, Priming Manual, Seal Material Carbon, Ceramic, Best Efficiency Head 8 ft
