Shop MEZIERE

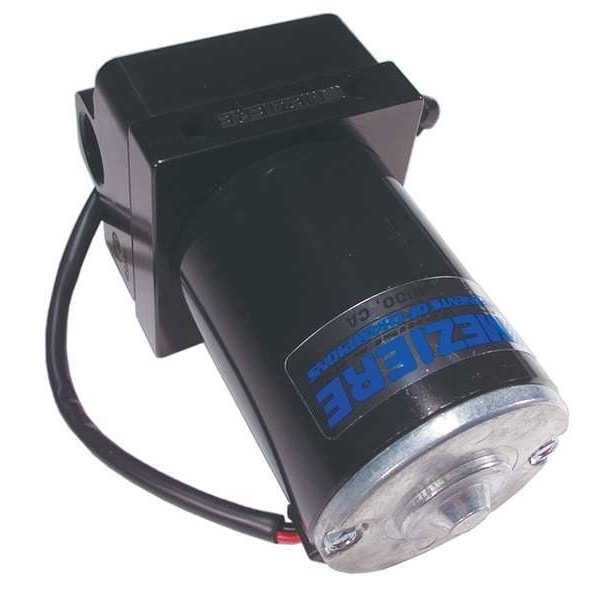

Aluminum 1/5 HP Centrifugal Pump 12V

  • Mfr # WPX750

  • Zoro # G4634366

product price:  $314.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1/5 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Inlet Size - Pumps
3/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WPX750
Zoro #
G4634366
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Height
7 3/16 in
Manufacturers Warranty Length
1 yr
Width
3 1/2 in
Length
3 11/16 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
3/4 in
Overall Height
7.1 in
Compatible Discharge Pipe Size
3/4 in
Overall Width
3.5 in
Overall Length
3.6 in
Impeller Diameter
2 2/5 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Shaft Outer Diameter
47/100 in
Cord Length
12 in

Details

HP - Pumps
1/5 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Max. Pressure - Pumps
35 psi
Max. Head
12 2/5 ft
Motor Enclosure - Pumps
Open Dripproof
Inlet Pressure
30 psi
Duty
Continuous
GPM of Water @ 80 Ft. of Head
0
GPM of Water @ 60 Ft. of Head
0
Bearing Type
Ball
Max. Liquid Temp.
250 Degrees F
Max. Case Pressure
35 psi
Impeller Type
Open
HP
1/5
Max. GPM @ Head
22 @ 2.3 ft
Voltage
12VDC
GPM of Water @ 10 Ft. of Head
4.8
Min. GPM @ Head
9 @ 7 ft
GPM of Water @ 0 Ft. of Head
25
GPM of Water @ 30 Ft. of Head
0
Motor RPM
2000
Motor Enclosure
Open Drip Proof
GPM of Water @ 70 Ft. of Head
0
Amps
5.6/8.5
Outlet
3/4" NPT
GPM of Water @ 20 Ft. of Head
0
Item
Vehicle Pump
Max. Specific Gravity
1.16
GPM @ 1 Ft. of Head
23.2
Inlet
3/4" NPT
Impeller Material
Aluminum
GPM @ 7 Feet of Head
9
Seal Material
Carbon, Ceramic
Best Efficiency GPM @ Head
15 gpm @ 4.6 ft
GPM of Water @ 15 Ft. of Head
0
Wetted Materials
Aluminum, Anodized Aluminum, Carbon/Ceramic, Stainless Steel, Stainless Steel Bearing
Housing Material
Aluminum
GPH of Water @ 5 Ft. of Head
14
Max. Pressure
35 psi
Best Efficiency Range GPM @ Head
9 to 15 gpm @ 6.90 to 4.60 ft
GPM of Water @ 50 Ft. of Head
0
GPM of Water @ 5 Ft. of Head
14
Phase
Single
GPM of Water @ 25 Ft. of Head
0
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Motor Type
Brushed
GPM of Water @ 40 Ft. of Head
0
Discharge Type
NPT
Horsepower
1/5 hp
Maximum Feet of Head
12.4 ft
Seal Type
Double Lip
Duty Cycle
Continuous
Best Efficiency Flow
15 gpm
Features
Double-Lip Seal, Preset Pressure Relief Valve and a Steel Gerotor
Priming
Manual
Flow Rate @ 10 ft of Head (Maximum)
4.8 gpm
NPSHr
69.3 ft of head
Shaft Material
Stainless Steel
Specific Gravity (Maximum)
1.16
For Use With Potable Systems
No
Flow Rate @ 1 ft of Head (Maximum)
23.1 gpm
Wetted Material
Aluminum, Carbon, Ceramic, Stainless Steel
Pump Housing Material
Aluminum
Nameplate Voltage
12V DC
Best Efficiency Head
4.6 ft
Impeller Design
Open
Shut Off Pressure (Maximum)
35 psi
Maximum RPM
2,000 RPM
Flow Rate @ 5 ft of Head (Maximum)
14 gpm
Intake Type
NPT
Volute Material
Aluminum
Pump Design
Inline
Shaft Seal Type
Lip
Feet of Head (Maximum)
12 ft
Discharge Rotation Increments
90 Degrees
Inlet Orientation
Side
Thermal Overload Protection
No
Motor Speed - Maximum
2,000 RPM
Pumping Application
Cooling and Heat Transfer
Chemical Compatibility
Water, Water-Glycol
Full Load Current
8.5 A
Drive Coupling Type
Rigid Coupling
Flow Rate (Maximum)
20 gpm
Case Pressure - Maximum
40 psia
Flow Rate @ 10 ft of Head - Maximum
4.8 gpm
Media Temperature - Minimum
35 Degrees F
Discharge Orientation
Side
Media Temperature - Maximum
250 Degrees F
Number of Stages
1
Shaft Seal Material
Carbon/Ceramic
Hazardous Location Class
Not Rated

Description

Vehicle Pump, Phase Single, Pump Housing Material Aluminum, Horsepower 1/5 hp, Nameplate Voltage 12V DC, Flow Rate @ 40 ft of Head (Maximum) Not Applicable, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Maximum Feet of Head 12.4 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Open Drip Proof, Flow Rate @ 5 ft of Head (Maximum) 14 gpm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
