Shop MEZIERE

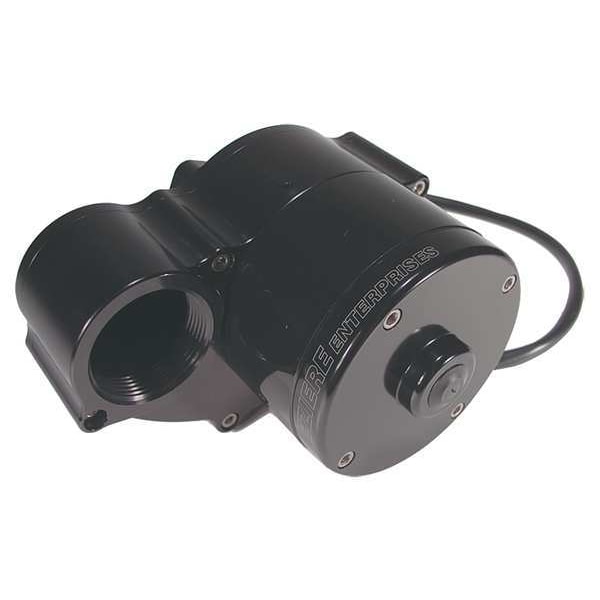

Aluminum 5/16 HP Centrifugal Pump 12V

  • Mfr # WPX755

  • Zoro # G4590853

product price:  $545.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
5/16 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Outlet Size - Pumps
1-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WPX755
Zoro #
G4590853
UPC #
-
Country of Origin
United States

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Width
5 1/8 in
Length
4 7/8 in
Height
6 5/16 in
Manufacturers Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Overall Width
5.1 in
Overall Length
4.8 in
Overall Height
6.3 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 1/2 in
Discharge Diameter
1 1/2 in
Impeller Diameter
2 9/10 in
Shaft Outer Diameter
47/100 in
Cord Length
12 in
Inlet Diameter
1 1/2 in

Details

HP - Pumps
5/16 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Max. Pressure - Pumps
35 psi
Max. Head
12 1/5 ft
Motor Enclosure - Pumps
Open Dripproof
GPM @ 7 Feet of Head
22.5
GPM of Water @ 15 Ft. of Head
0
Min. GPM @ Head
15 @ 9.7 ft
Impeller Material
Aluminum
GPM of Water @ 0 Ft. of Head
55
Phase
Single
Item
Vehicle Pump
GPM @ 1 Ft. of Head
49
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Outlet
1-1/2" NPT
GPM of Water @ 50 Ft. of Head
0
GPM of Water @ 10 Ft. of Head
15
Best Efficiency GPM @ Head
20 gpm @ 8 ft
GPH of Water @ 5 Ft. of Head
27.5
Motor RPM
2200
GPM of Water @ 60 Ft. of Head
0
Motor Type
Brushed
Motor Enclosure
Open Drip Proof
Inlet
Welded
Duty
Continuous
GPM of Water @ 5 Ft. of Head
28
Best Efficiency Range GPM @ Head
15 to 25 gpm @ 9.70 to 6 ft
Amps
4/9.5
GPM of Water @ 25 Ft. of Head
0
GPM of Water @ 70 Ft. of Head
0
Seal Material
Carbon, Ceramic
Max. Pressure
35 psi
Impeller Type
Open
GPM of Water @ 30 Ft. of Head
0
Inlet Pressure
30 psi
GPM of Water @ 80 Ft. of Head
0
Wetted Materials
Aluminum, Anodized Aluminum, Carbon/Ceramic, Stainless Steel, Stainless Steel Bearing
Voltage
12VDC
Max. Case Pressure
35 psi
Max. Liquid Temp.
250 Degrees F
HP
5/16
Housing Material
Aluminum
GPM of Water @ 40 Ft. of Head
0
Max. GPM @ Head
42 @ 2.3 ft
Bearing Type
Ball
Max. Specific Gravity
1.16
GPM of Water @ 20 Ft. of Head
0
Wetted Material
Aluminum, Carbon, Ceramic, Stainless Steel
Best Efficiency Flow
20 gpm
Features
Double-Lip Seal, Preset Pressure Relief Valve and a Steel Gerotor
Shut Off Pressure (Maximum)
35 psi
Impeller Design
Open
Horsepower
5/16 hp
Priming
Manual
Best Efficiency Head
8 ft
Flow Rate @ 1 ft of Head (Maximum)
49 gpm
Flow Rate @ 10 ft of Head (Maximum)
15 gpm
NPSHr
69.3 ft of head
Discharge Type
NPT
Maximum RPM
2,200 RPM
Pump Housing Material
Aluminum
Seal Type
Double Lip
Intake Type
NPT
Maximum Feet of Head
12.2 ft
Duty Cycle
Continuous
For Use With Potable Systems
No
Flow Rate @ 5 ft of Head (Maximum)
28 gpm
Specific Gravity (Maximum)
1.16
Nameplate Voltage
12V DC
Shaft Material
Stainless Steel
Volute Material
Aluminum
Chemical Compatibility
Water, Water-Glycol
Discharge Orientation
Side
Pumping Application
Cooling and Heat Transfer
Case Pressure - Maximum
40 psia
Discharge Rotation Increments
0 Degrees
Feet of Head (Maximum)
12 ft
Inlet Orientation
Side
Shaft Seal Type
Lip
Drive Coupling Type
Rigid Coupling
Motor Speed - Maximum
2,200 RPM
Media Temperature - Maximum
250 Degrees F
Pump Design
Inline
Thermal Overload Protection
No
Media Temperature - Minimum
35 Degrees F
Full Load Current
11.5 A
Hazardous Location Class
Not Rated
Shaft Seal Material
Carbon/Ceramic
Flow Rate (Maximum)
55 gpm
Number of Stages
1
Flow Rate @ 10 ft of Head - Maximum
15 gpm

Description

Vehicle Pump, Phase Single, Pump Housing Material Aluminum, Horsepower 5/16 hp, Nameplate Voltage 12V DC, Maximum Feet of Head 12.2 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 5 ft of Head (Maximum) 28 gpm, Flow Rate @ 10 ft of Head (Maximum) 15 gpm, Priming Manual, Seal Material Carbon, Ceramic, Best Efficiency Head 8 ft

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
