  11. Threading Tool, 3 in L, Carbide

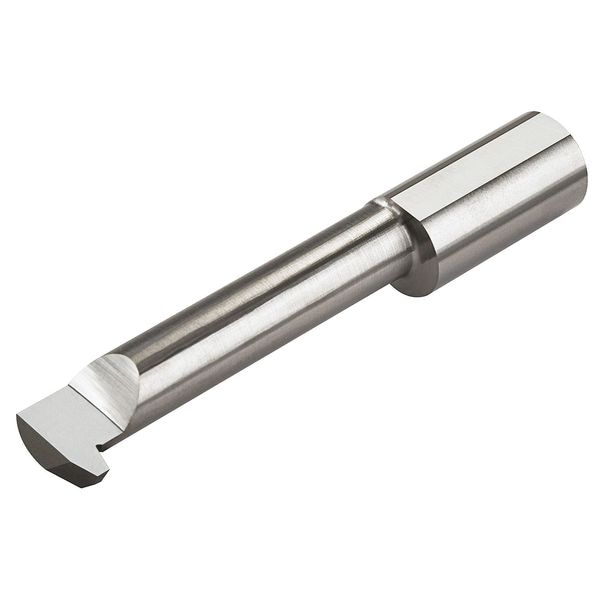

Micro 100 Threading Tool, 3 in L, Carbide IAT-2000-6 - main

Threading Tool, 3 in L, Carbide

  • Mfr # IAT-2000-6

  • Zoro # G7967111

product price: $87.79
/ea
Free Shipping & Returns

Key Features

Overall Length
3 in
Shank Material
Carbide
Finish
Uncoated
Hole Dia.
.490"
Shank Dia.
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IAT-2000-6
Zoro #
G7967111
UPC #
728709136812
Country of Origin
United States

Dimensions

Overall Length
3 in
Hole Dia.
.490"
Shank Dia.
1/2 in
Max. Depth
2.000"
Flat Width
0.0570 in
Max. Hole Depth
2 in
Min. Hole Dia.
0.4900 in
Split Length
0.275"
Neck Dia.
0.3650"
Max. Bore Depth
2"
Groove Width
0.1440"
Min. Bore Dia.
0.4900"

Details

Item
Threading Tool
Shank Material
Carbide
Finish
Uncoated
Projection
0.1200 in
Cutting Direction
Right Hand
Material
C2 Micrograin Carbide
Style
Internal ACME Threading Tool
Measurement System
Fractional Inch
Shank Type - Machining
Straight with Three Flats
Cutting Application
Threading
Offset Point
0.0720 in
Max. Threads per Inch
6
Thread Standard
ACME
Included Angle
29 Degrees
Features
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Cutter Material
Carbide
Series
IAT
Thread Direction
Right Hand
Finish - Machining
Bright (Uncoated)
Center to Cutting Tip
0.2400 in
Offset
0.072"

Description

Threading Tool, Included Angle 29 Degrees , Carbide, Bright (Uncoated), 0.2400 in, Threading
