- MFR #
- 120AC-00-O-AA-15P
- Zoro #
- G502016278
- UPC #
- -
- Country of Origin
- United States
- Item

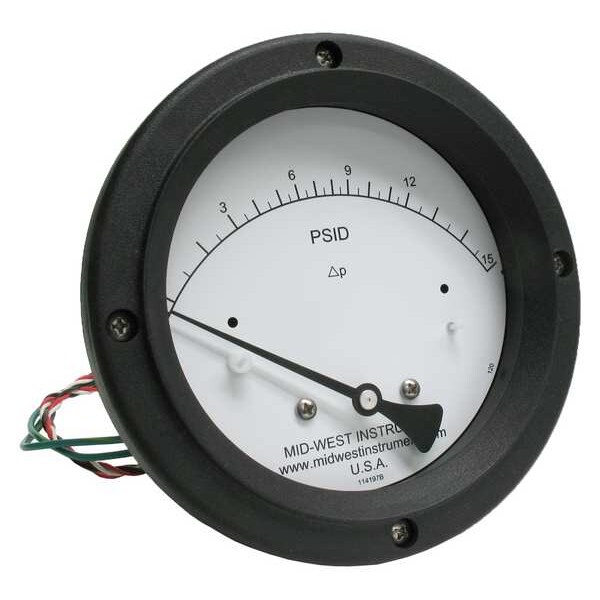

- Differential Pressure Gauge & Switch
- Accuracy
- +/-3-2-3%
- Process Connection Type
- NPT
- Series
- 120
- Process Connection Gender
- Female
- Application
- Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
- Process Connection Location
- Back
- Housing Material
- Aluminum
- Pressure Range
- 0 to 110 psid
- Sensor Type
- Piston
- Gauge Accuracy
- +/-3-2-3%
- Relay Type
- SPDT
- Standards
- CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
- Gauge Case Material
- Plastic
- Case Material
- Plastic
- Seal Material
- Buna-N
- Socket Material
- Ceramic/Stainless Steel
- Case Construction
- Hermetically Sealed
- Removable Bezel
- No
- Accuracy Details
- +/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
- Hazardous Location Rating
- Not Rated
- Includes Calibration Certificate
- No
- Ambient Operating Temperature Range
- -40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
- Lens Material
- Shatter Resistant Acrylic
- Switch Contact Type
- SPDT
- Over-Pressure Limit
- Over-Range Protection to Maximum Pressure
- Panel-Mountable
- Yes
- Blowout Safety Back
- No
- Panel Mount Characteristics
- 5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
- Sensor Material
- Buna-N
- Adjustable Set Points
- Yes
- IP/NEMA Rating
- IP65, NEMA 4X
- Compatible Process Media
- Pressure Drop
- O-Ring Material
- Buna-N
- Number of Switches
- 1
- Case Shape
- Round
- Burst Pressure
- 6,000 psi
- Includes Vent Plug
- No
- Maximum Working Static Pressure
- 6,000 psi
- Dial Color
- White
- Includes Mounting Hardware
- No
- Accuracy Grade
- ASME B40.1 Grade B
- Switch Electrical Requirements
- 0.25A @ 125V AC/DC
- Pressure Gauge Type
- Differential Pressure Gauge with Switch
- Dial Face Material
- Aluminum
- Movement Material
- Stainless Steel
- Process Temperature Range
- -40 Degrees to 200 Degrees F
- Non-Sparking
- No
- Power Source
- 125V AC/DC
- Repeatability
- 1%
- Pressure Measurement - Minimum
- 0 psid
- Process Media Temperature - Maximum
- 200 Degrees F
- Operating Temperature - Minimum
- -40 Degrees F
- NEMA Enclosure Rating
- 4X
- IP Rating
- IP65
- Pressure Measurement - Maximum
- 110 psid
- Process Media Temperature - Minimum
- -40 Degrees F
- Operating Temperature - Maximum
- 200 Degrees F
- Product Type
- Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
- Working Static Pressure - Maximum
- 6,000 psi
- Switch Contact Form
- SPDT
