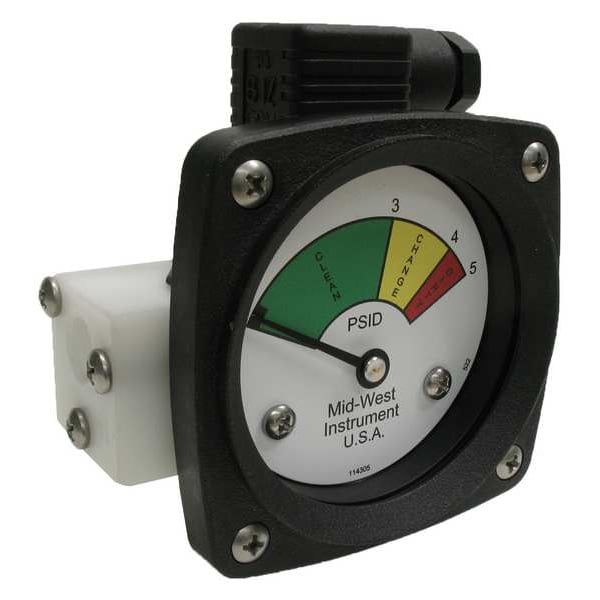

Midwest Instrument Gauge 3-Color Filter Change DP 522P-005V-LE - main

Gauge 3-Color Filter Change DP

  • Mfr # 522P-005V-LE

  • Zoro # G201704704

product price: $306.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-5% of Full Scale
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
522
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
522P-005V-LE
Zoro #
G201704704
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Bolt Circle Diameter
3.5 in
For Panel Cut-Out Size
2.5 in
Manufacturer Warranty Length
5 yr

Details

Item
3-Color Differential Pressure Indicator
Accuracy
+/-5% of Full Scale
Process Connection Type
NPT
Series
522
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Water Treatment Applications
Process Connection Location
End
Housing Material
Acetal Plastic
Pressure Range
0 to 5 psid
Sensor Type
Diaphragm
Seal Material
Viton
Gauge Case Material
Glass Reinforced Thermoplastic
Case Material
Glass Reinforced Thermoplastic
Standards
ASME B1.20.1, ASME B40.100, CSA-C22.2 No. 14, EN-61010-1, NEMA Std. 250, UL Std. No. 50 and 508
Rated Total Pressure
1,000 psi
Lens Material
Acrylic
Includes Vent Plug
No
Case Construction
Corrosion Resistant, Weather Resistant
Hazardous Location Rating
Not Rated
Blowout Safety Back
No
Non-Sparking
No
IP/NEMA Rating
IP65, NEMA 4X
Removable Bezel
No
Compatible Process Media
Gases, Water
Panel-Mountable
Yes
Sensor Material
Viton
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Shape
Square
Dial Color
Green-Yellow-Red
Panel Mount Characteristics
(2) #10-32 dia Hole
Includes Calibration Certificate
No
Accuracy Grade
ASME B40.1 Grade D
Transition Point Range - Yellow
3.0 to 4.0 psid
Transition Point Range - Red
4.0 to 5.0 psid
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Transition Point Range - Green
0 to 3.0 psid
Includes Mounting Hardware
No
Pressure Gauge Type
Differential Filter Indicator
Adjustable Set Points
No
Maximum Working Static Pressure
1,000 psig
Accuracy Details
+/-5% of Full Scale
Includes Switch
Yes
Switch Connector Type
DIN 43650/IP65-PG9 NEMA 4X Plug-In
Switch Wattage Output
60 W
Switch Adjustment
40% to 95% of Full Scale Range
Switch Enclosure Type
Open
Switch Output Current
3 A
Switch Voltage Output
240 V AC/DC
Switch Output Position
Normally Open
Process Media Temperature - Minimum
-40 Degrees F
Working Static Pressure - Maximum
1,000 psig
Dirty Filter Pressure Measurement - Minimum
4 psid
Change Filter Pressure Measurement - Maximum
4 psid
Process Media Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 psid
Change Filter Pressure Measurement - Minimum
3 psid
Dial Scale Color
Green-Yellow-Red
NEMA Enclosure Rating
4X
Clean Filter Pressure Measurement - Maximum
3 psid
Dirty Filter Pressure Measurement - Maximum
5 psid
IP Rating
IP65
Clean Filter Pressure Measurement - Minimum
0 psid
Pressure Measurement - Maximum
5 psid

Description

3-Color Differential Pressure Indicator, Accuracy +/-5 Percent of Full Scale, Gauge Case Material Glass Reinforced Thermoplastic, Lens Material Acrylic, IP/NEMA Rating IP65, NEMA 4X, Nominal Dial Size 2 1/2 in, Panel-Mountable Yes, Pressure Gauge Type Differential Filter Indicator, Process Connection Size 1/4 in, Process Connection Type NPT, Process Connection Gender Female, Process Connection Location End, Sensor Material Viton, Pressure Range 0 to 5 psid
