- MFR #
- PEM204LF
- Zoro #
- G6117361
- UPC #
- 628311202465
- Country of Origin
- China
- Item

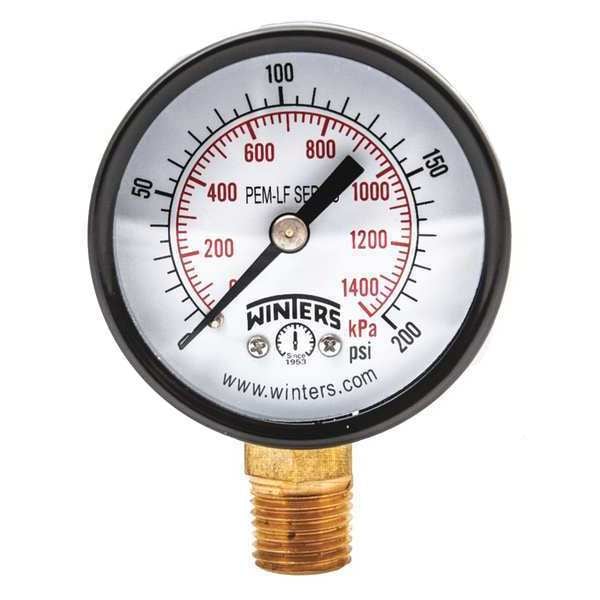

- Lead-Free Pressure Gauge
- Accuracy
- +/-3-2-3%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
- Gauge Case Material
- Steel
- Series
- PEM-LF
- Lens Material
- Plastic
- Primary Pressure Range
- 0 to 200
- Primary Scale Units
- psi
- IP/NEMA Rating
- IP52
- Liquid-Filled Case
- No
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Gauge Application
- General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
- Calibration Certificate Included
- No
- For Use With
- Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
- Case Color
- Black
- Characteristics
- Friction Bezel Ring
- Case Material
- Steel
- Socket Material
- Lead Free Brass
- NSF Certified
- Yes
- Connection Type
- MNPT
- Wetted Materials
- Brass / Bronze
- Standards
- ANSI/ASME, CRN, NSF
- Compatible Process Media
- Non-Clogging, Non-Corroding, Potable Water
- Case Finish
- Painted
- Movement Material
- Stainless Steel
- Scale Type
- Dual
- Non-Sparking
- No
- Field Fillable
- No
- Cleaned for Oxygen Service
- No
- Pointer Color
- Black
- Case Construction
- Welded Joint
- Removable Bezel
- No
- Includes Mounting Hardware
- No
- Includes Calibration Certificate
- No
- Gauge Case Liquid
- None
- Bezel Material
- Steel
- Freeze Resistant Movement
- No
- Dial Color
- White
- Accuracy Grade
- Grade B
- Ambient Operating Temperature Range
- -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
- Dial Face Material
- Aluminum
- Sensor Material
- Phosphor Bronze
- Pointer Material
- Aluminum
- Process Connection Gender
- Male
- Includes Vent Plug
- No
- Process Temperature Range
- -40 Degrees to 150 Degrees F
- Over-Pressure Limit
- 25% of Full Scale
- Dry Dampening Feature
- None
- Pressure Range Type
- Pressure
- Pressure Gauge Type
- Lead-Free Pressure Gauge
- Sensor Type
- Bourdon Tube
- Vibration Resistance
- None
- Accuracy Scale
- Mid-Scale
- Secondary Scale Units
- kPa
- Secondary Pressure Range
- 0 to 1,400
- Maximum Pressure
- 200
- Operating Temperature Range
- -40 Degrees to 150 Degrees F
- Secondary Scale Pressure Measurement - Maximum
- 1,400 kPa
- Primary Scale Pressure Measurement - Maximum
- 200 psi
- Operating Temperature - Minimum
- -40 Degrees F
- Secondary Scale Pressure Measurement - Minimum
- 0 kPa
- Process Media Temperature - Maximum
- 150 Degrees F
- Case Liquid
- None
- IP Rating
- IP52
- NEMA Enclosure Rating
- 5
- Operating Temperature - Maximum
- 150 Degrees F
- Process Media Temperature - Minimum
- -40 Degrees F
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- Compatible with Brand
- Universal
