  9. Pressure Gauge, 0 to 15 psi

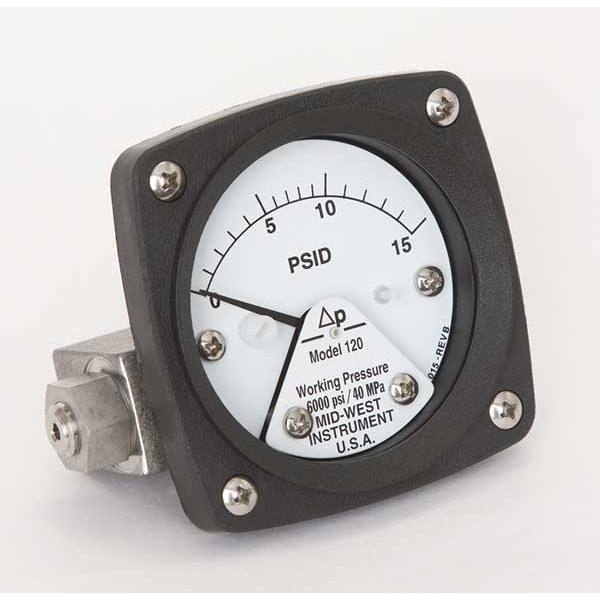

Midwest Instrument Pressure Gauge, 0 to 15 psi 120-AA-00-OO-15P - main

Pressure Gauge, 0 to 15 psi

  • Mfr # 120-AA-00-OO-15P

  • Zoro # G0017857

product price: $235.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120-AA-00-OO-15P
Zoro #
G0017857
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Gauge Nominal Dial Size
2 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Case Diameter
3 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Case Depth
0.75 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 15 psid
Sensor Type
Piston
Basic Gauge Case Material
Metal
Standards
CSA, UL
Gauge Accuracy
+/-3-2-3%
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Differential Pressure Range
0 to 15 psi
Differential Pressure Range Value
0 to 15
Seal Material
Buna-N
Scale Type
Pressure
Body Material
Aluminum
Dial Material
Engineered Plastic
Gauge Primary Range Smallest Graduation
1
Rated Total Pressure
3,000 psi
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Piston Material
Stainless Steel
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Gauge Connection Type
FNPT
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Includes
Instructions
Case Material
Plastic
Socket Material
Ceramic/Stainless Steel
Lens Material
Acrylic
Panel-Mountable
Yes
IP/NEMA Rating
IP65, NEMA 4X
Gauge Case Material
Plastic
Movement Material
Stainless Steel
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Adjustable Set Points
Yes
Bezel Gasket Material
Buna-N
Accuracy Grade
ASME B40.1 Grade B
Includes Calibration Certificate
No
Repeatability
1%
Process Temperature Range
-40 Degrees to 200 Degrees F
Primary Scale Minor Graduations
1
Case Shape
Round
Pressure Gauge Type
Differential Pressure Gauge
Sensor Material
Buna-N
Case Construction
Glass Reinforced
Blowout Safety Back
No
Maximum Working Static Pressure
3,000 psig
Includes Vent Plug
No
Dial Color
White
Non-Sparking
No
Hazardous Location Rating
Not Rated
Removable Bezel
No
Includes Mounting Hardware
No
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Pressure Scale Minor Graduations
1
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Maximum
15 psid
Process Media Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 psid
Number of Switches
0
IP Rating
IP65
Working Static Pressure - Maximum
3,000 psig
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 15 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 6000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, Aluminum Body Material, Plastic Dial Material, Stainless Steel Piston Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
