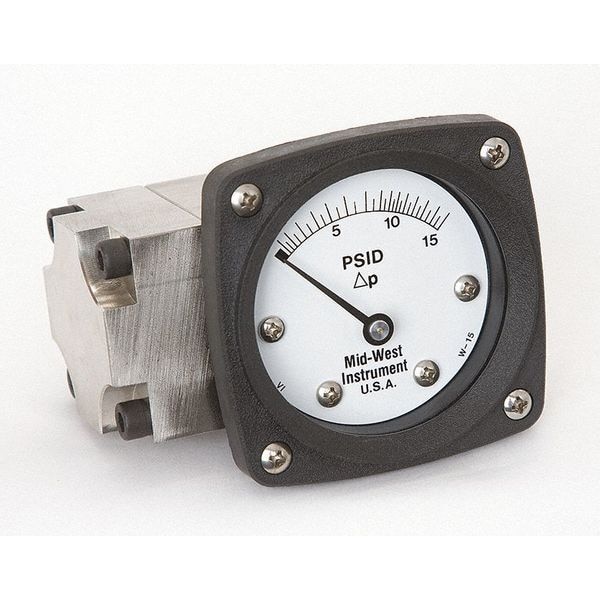

Midwest Instrument Pressure Gauge, 0 to 15 psi 142-SA-00-OO-15P - main

Pressure Gauge, 0 to 15 psi

  • Mfr # 142-SA-00-OO-15P

  • Zoro # G0018207

product price: $644.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-SA-00-OO-15P
Zoro #
G0018207
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Gauge Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
5 yr
Differential Gauge Connection Size
1/4 in
Manufacturer Warranty Length
5 yr
Case Diameter
3 in
Case Depth
0.78 in
Bolt Circle Diameter
3.5 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 15 psid
Sensor Type
Diaphragm
Seal Material
Buna-N
Differential Gauge Connection Type
FNPT
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Body Material
316 Stainless Steel
Differential Pressure Gauge Type
Differential Pressure Gauge
Basic Gauge Wetted Parts
Buna-N
Differential Pressure Range
0 to 15 psi
Includes
Instructions
Diaphragm Material
Buna-N
Differential Pressure Range Value
0 to 15
Dial Material
Engineered Plastic
Gauge Accuracy
+/-3-2-3%
Rated Total Pressure
3,000 psi
Gauge Primary Range Smallest Graduation
1
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Basic Gauge Case Material
Metal
Scale Type
Pressure
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Socket Material
Ceramic/Stainless Steel
Case Material
Plastic
Repeatability
1%
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Pointer Material
316 Stainless Steel
Sensor Material
Buna-N
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Adjustable Set Points
Yes
Removable Bezel
No
Includes Mounting Hardware
No
Maximum Working Static Pressure
3,000 psig
Case Shape
Round
IP/NEMA Rating
IP65, NEMA 4X
Process Temperature Range
-40 Degrees to 200 Degrees F
Primary Scale Minor Graduations
1
Panel-Mountable
Yes
Non-Sparking
No
Includes Vent Plug
No
Compatible Process Media
Fluid, Wet Gas
Gauge Case Material
Plastic
Lens Material
Acrylic
Bezel Gasket Material
Buna-N
Hazardous Location Rating
Not Rated
Blowout Safety Back
No
Accuracy Grade
ASME B40.1 Grade B
Case Construction
Glass Reinforced
Movement Material
316 Stainless Steel
Movement Type
Rotary
Pressure Gauge Type
Differential Pressure Gauge
Dial Color
White
Includes Calibration Certificate
No
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
4X
Process Media Temperature - Maximum
200 Degrees F
Number of Switches
0
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 psid
Pressure Scale Minor Graduations
1
Pressure Measurement - Maximum
15 psid
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.
Working Static Pressure - Maximum
3,000 psig

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 15 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, 316 Stainless Steel Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
