Midwest Instrument

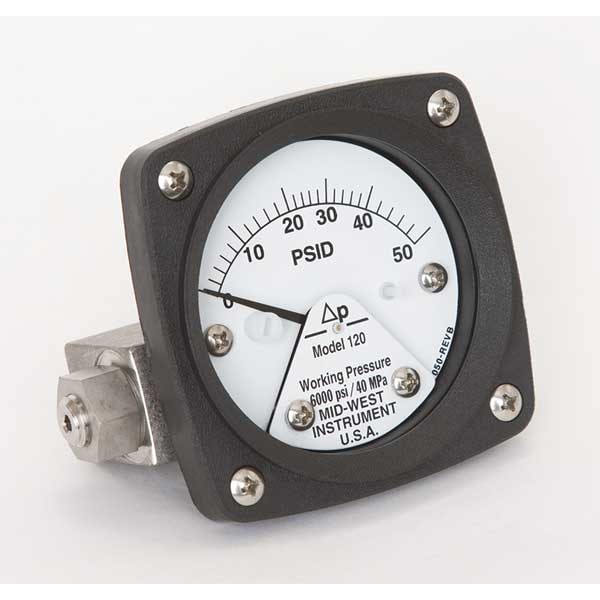

Pressure Gauge, 0 to 50 psi
- Zoro #: G0017893
- Mfr #: 120-AA-00-OO-50P
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Differential Pressure Gauge Type: Differential Pressure Gauge
- Gauge Nominal Dial Size: 2 1/2 in
- Basic Gauge Case Material: Metal
- Basic Gauge Wetted Parts: Stainless Steel / Buna-N
- Differential Gauge Connection Type: FNPT
- Differential Gauge Connection Size: 1/4 in
- Gauge Connection Location: Back
- Differential Pressure Range Units: psi
$200.00
Subtotal: $200.00
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Midwest Instrument #120-AA-00-OO-50P Specifications
- Zoro #: G0017893
- Mfr #: 120-AA-00-OO-50P
- Differential Pressure Gauge Type: Differential Pressure Gauge
- Gauge Nominal Dial Size: 2 1/2 in
- Basic Gauge Case Material: Metal
- Basic Gauge Wetted Parts: Stainless Steel / Buna-N
- Differential Gauge Connection Type: FNPT
- Differential Gauge Connection Size: 1/4 in
- Gauge Connection Location: Back
- Differential Pressure Range Units: psi
- Differential Pressure Range Value: 0 to 50
- Gauge Accuracy: +/-3-2-3%
- Includes: Instructions
- Scale Type: Pressure
- Rated Total Pressure: 3000 PSI
- Piston Material: Stainless Steel
- Seal Material: Buna-n
- Gauge Primary Range Smallest Graduation: 2
- Standards: ASME B1.20.1, ASME B40.100, CSA-C22.2 No. 14.25 and 30, EN-61010-1, NACE MR0175, NEMA Std. No. 250, SAE J514, UL Std. No. 50,508 and 1203
- Manufacturers Warranty Length: 5 yr
- Dial Material: Engineered Plastic
- Item: Differential Pressure Gauge
- Body Material: Aluminum
- Differential Pressure Range: 0 to 50 psi
- Gauge Operating Temp. Range: -40 Degrees to 200 Degrees F
- Series: Series 120
- Process Connection Size: 1/4 in
- Case Construction: Glass Reinforced
- Process Connection Location: Back
- Gauge Case Material: Plastic
- Includes Calibration Certificate: No
- Movement Material: Stainless Steel
- Connection Location: Back
- Case Depth: 0.75 in
- Application - Max Pressure: For High Operating Pressure
- Adjustable Set Points: Yes
- Accuracy: +/-3-2-3%
- Hazardous Location Rating: Not Rated
- Primary Scale Minor Graduations: 2
- Housing Material: Aluminum
- Pressure Gauge Type: Differential Pressure Gauge
- Maximum Working Static Pressure: 3,000 psig
- Bezel Gasket Material: Buna-N
- Sensor Material: Buna-N
- (Hidden) Series x Accuracy: +/-3-2-3% x 120
- Non-Sparking: No
- Lens Material: Acrylic
- Application: Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
- Brand and Series: MIDWEST INSTRUMENT 120
- Repeatability: 1%
- Process Connection Gender: Female
- Dial Color: White
- Case Shape: Round
- Ambient Operating Temperature Range: -40 Degrees to 200 Degrees F
- Manufacturer Warranty Length: 5 yr
- Bolt Circle Diameter: 3.5 in
- Includes Mounting Hardware: No
- IP/NEMA Rating: IP65, NEMA 4X
- Accuracy Grade: ASME B40.1 Grade B
- Process Connection Type: NPT
- Panel-Mountable: Yes
- (Hidden) max pressure differentiator: 3,000 psig x For High Operating Pressure
- Max Pressure Application: For High Operating Pressure
- Case Diameter: 3 in
- Process Temperature Range: -40 Degrees to 200 Degrees F
- Process Connection: 1/4 in NPT Female
- Pressure Range: 0 to 50 psid
- Removable Bezel: No
- Nominal Dial Size: 2 1/2 in
- Blowout Safety Back: No
- Panel Mount Characteristics: 3 L Dia Holes on E Dia Bolt Circle
- Includes Vent Plug: No
- Sensor Type: Piston
- Country of Origin (subject to change): United States
Description
Differential Pressure Gauge, Gauge Nominal Dial Size 2 1/2 in, Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Stainless Steel / Buna-N, Differential Gauge Connection Type FNPT, Differential Gauge Connection Size 1/4 in, Gauge Connection Location Back, Differential Pressure Range Units psi, Differential Pressure Range Value 0 to 50, Gauge Accuracy +/-3-2-3 Percent, Body Material Aluminum, Gauge Primary Range Smallest Graduation 2, Piston Material Stainless Steel, Seal Material Buna-N
