Shop MILLER ELECTRIC

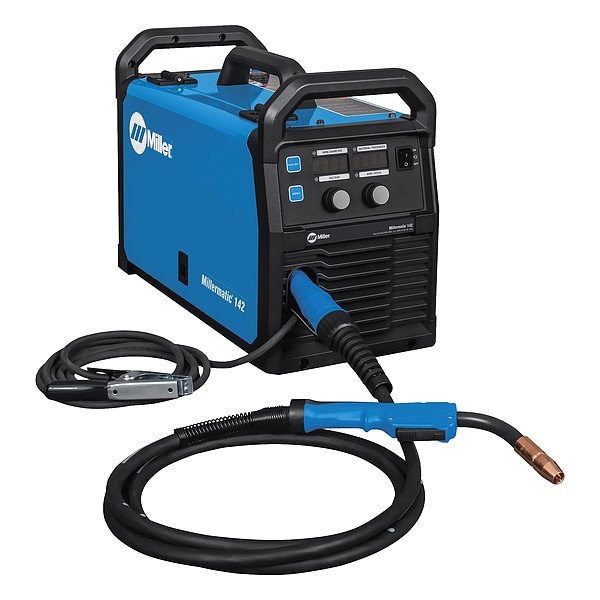

MIG Welder, Millermatic 142, Single-Phase, 110/115/120V AC

  • Mfr # 907838

  • Zoro # G110081088

product price:
$
1,482.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Millermatic 142
Input Voltage
110/115/120V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Application
Car Restoration, Garage/Shop, Metal Art, Welding Projects
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907838
Zoro #
G110081088
UPC #
715959703239
Country of Origin
United States

Dimensions

Overall Height
14.63 in
Overall Width
9.75 in
Overall Depth
20 in
For Minimum Material Thickness
14 ga (Aluminum), 3/16 in (Mild Steel)
For Maximum Material Thickness
14 ga (Aluminum), 3/16 in (Mild Steel)
Maximum Wire Diameter
0.03 in (Solid Steel), 0.03 in (Stainless), 0.035 in (Flux Cored)
Power Cord Length
6 1/2 ft
Minimum Wire Diameter
0.024 in (Solid Steel), 0.024 in (Stainless), 0.03 in (Flux Cored)
For Aluminum Thickness - Maximum
14 ga
For Aluminum Thickness - Minimum
18 ga
For Steel Thickness - Maximum
3/16 in
Wire Diameter Solid - Maximum
0.03 in
For Steel Thickness - Minimum
24 ga
Wire Diameter Flux-Cored - Minimum
0.03 in
Wire Diameter Solid - Minimum
0.024 in
For Stainless Steel Thickness - Minimum
24 ga
Wire Diameter Flux-Cored - Maximum
0.035 in
For Stainless Steel Thickness - Maximum
3/16 in

Details

Item
MIG Welder
Series
Millermatic 142
Input Voltage
110/115/120V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Application
Car Restoration, Garage/Shop, Metal Art, Welding Projects
Standards
CSA
Includes
0.030/0.035 in (0.8/0.9 mm) Flux-Cored Wire, 10 ft (3 m) MDX-100 MIG Welding Gun, 10 ft (3 m) Work Cable with Clamp, 6.5 ft (2 m) Power Cord with Plug, Argon and AR/CO2 Mix Flow Gauge Regulator with Gas Hose, Hobart Spool of 0.030 in (0.8 mm) Solid Wire, Hook-and-Loop Cord Wraps, Material Thickness Gauge (#229 895), Quick Select Drive Rolls for 0.024 in (0.6 mm) or 0.030/0.035 in (0.8/0.9 mm) Solid Wire, Two Contact Tips for 0.030 in (0.8 mm) Wire
Features
Auto Spool Gun Detect, Auto-Set, Generator Compatible, Quick Select Drive Roll, Segmented Display, Smooth-Start
Input Frequency
60 Hz
Power Cord Included
Yes
For Material Type
Aluminum, Stainless Steel, Steel
Maximum Wire Feed Speed
600 in/min
Weight
33 lb
Welding Mode
CV
Polarity
DC
MIG Welding Maximum Output Current
140 A
Enhanced Process
Flux Cored (FCAW), MIG (GMAW)
Minimum Wire Feed Speed
60 in/min
Amperage Range
30 to 140 A
For Wire Type
Flux-Cored, Solid
MIG Welding Minimum Output Current
30 A
Model
Millermatic 142
MIG Welding Output @ Duty Cycle
100 A @ 19 V, 60%, 80 A @ 18 V, 100%
Color
Black, Blue
Plug Type
5-15P
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Amperage MIG - Maximum
140 A
Amperage MIG - Minimum
30 A
Rated Output @ Duty Cycle (MIG)
100 A @ 19 V, 60%, 80 A @ 18 V, 100%
Welding Power Source Type
CV

Description

MIG Welder, Series Millermatic 142, Input Voltage 110/115/120V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.03 in (Solid Steel), 0.03 in (Stainless), 0.035 in (Flux Cored), Maximum Wire Feed Speed 600 in/min, Model Millermatic 142, MIG Welding Output @ Duty Cycle 100 A @ 19 V, 60 Percent, 80 A @ 18 V, 100 Percent
