Shop MILLER ELECTRIC

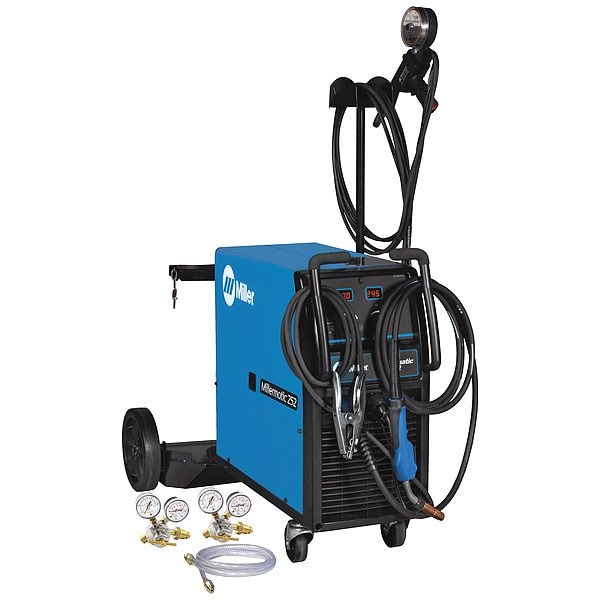

MIG Welding Package, Millermatic 252, Single-Phase, 230V AC, 460V AC, 575V AC

  • Mfr # 951961
  • Zoro # G105932920
product price:
$
10,037.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Millermatic 252
Input Voltage
230/460/575V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Standards
CSA Certified (Canadian and U.S. Standard)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
951961
Zoro #
G105932920
UPC #
715959697071
Country of Origin
United States

Dimensions

Overall Height
30 in
Overall Width
19 in
Overall Depth
40 in
Maximum Wire Diameter
0.045 in (Flux-Cored), 0.045 in (Solid)
Power Cord Length
10 ft
For Maximum Material Thickness
1/2 in (Mild Steel), 3/8 in (Aluminum)
Minimum Wire Diameter
0.023 in (Solid Steel), 0.023 in (Stainless), 0.03 in (Flux Cored), 0.6 mm (Solid Steel), 0.6 mm (Stainless), 0.8 mm (Flux-Cored)
For Minimum Material Thickness
0.6 mm (Mild Steel), 14 ga (Aluminum)
For Stainless Steel Thickness - Minimum
22 ga
Wire Diameter Solid - Maximum
0.045 in
For Aluminum Thickness - Minimum
14 ga
For Steel Thickness - Minimum
3/5 mm
Wire Diameter Flux-Cored - Maximum
0.045 in
For Steel Thickness - Maximum
1/2 in
For Aluminum Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Minimum
0.03 in
For Stainless Steel Thickness - Maximum
1/2 in
Wire Diameter Solid - Minimum
0.023 in
Fits Chest Size
Argon Mix Regulator, Dual EZ-Change(TM) Low Cylinder Rack with Elevated Gun and Cable Rack, Extra Contact tips, Factory-installed Running Gear with EZ-Change(TM) Single Low Cylinder Rack, Flow Gauge and Hose, Millermatic(R) 252, Power cord and Plug, work Cable and Clamp

Details

Item
MIG Welding Package
Series
Millermatic 252
Input Voltage
230/460/575V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Standards
CSA Certified (Canadian and U.S. Standard)
Features
Argon Mix Regulator, Dual EZ-Change(TM) Low Cylinder Rack with Elevated Gun and Cable Rack, Extra Contact tips, Factory-installed Running Gear with EZ-Change(TM) Single Low Cylinder Rack, Flow Gauge and Hose, Millermatic(R) 252, Power cord and Plug, work Cable and Clamp
Application
Farm, Home and Industrial Light, Maintenance and Repair, Metal Fabrication
Includes
0.03/0.035 in Reversible Drive Rolls, 10 ft (3 m) Power Cord and Plug, 10 ft (3 m) Work Cable and Clamp, 15 ft (4.5 m) 250 a MDX(TM)-250 MIG gun with Bernard(R) AccuLock(TM) MDX Consumables for 0.03/0.035 in (0.8/0.9 mm) Wire, Argon Mix Regulator/Flow Gauge and Hose, Dual EZ-Change(TM) Low Cylinder Rack with Elevated Gun and Cable Rack #300337, Extra Contact Tips, Factory-Installed Running Gear with EZ-Change(TM) Single Low Cylinder Rack, Millermatic(R) 252, Spoolmatic 30A #130831
For Material Type
Aluminum, Stainless Steel, Steel
Minimum Wire Feed Speed
1.3 m/min
Amperage Range
30 to 300 A
Weight
205 lb
Welding Mode
CV
Enhanced Process
MIG (GMAW)
Power Cord Included
Yes
MIG Welding Minimum Output Current
30 A
Maximum Wire Feed Speed
17.8 m/min
For Wire Type
Flux-Cored, Solid
Input Frequency
60 Hz
Model
951961
MIG Welding Maximum Output Current
300 A
MIG Welding Output @ Duty Cycle
200 A @ 24 VDC, 60%, 250 A @ 26.5 VDC, 40%
Plug Type
6-50P
Polarity
DC
Rated Output @ Duty Cycle (MIG)
200 A @ 24 VDC, 60%, 250 A @ 26.5 VDC, 40%
Welding Power Source Type
CV
Amperage MIG - Minimum
30 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Amperage MIG - Maximum
300 A

Description

MIG Welding Package, Series Millermatic 252, Input Voltage 230/460/575V AC, Phase Single, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.045 in (Flux-Cored), 0.045 in (Solid Steel), 0.045 in (Stainless), 1.2 mm (Flux-Cored), 1.2 mm (Solid Steel), 1.2 mm (Stainless), Maximum Wire Feed Speed 17.8 m/min, Remote Connection Type Not Applicable, Model 951961
