Shop MILLER ELECTRIC

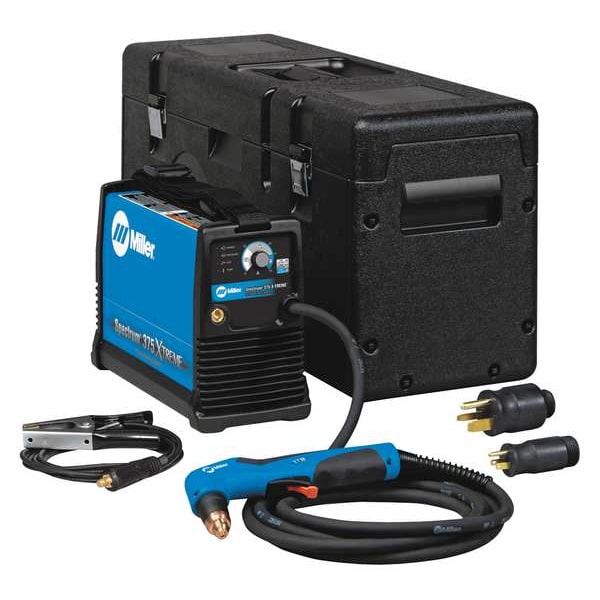

Plasma Cutter, Inverter, Spectrum 375

  • Mfr # 907529

  • Zoro # G4355766

product price:
$
2,639.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Rated Output
30 A
Input Voltage
110/115/120/220/230/240V AC
Cutting Capacity (In.)
3/8 at 10 IPM
Cable Length (Ft.)
12
Series
Spectrum 375 X-TREME
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907529
Zoro #
G4355766
UPC #
715959570107
Country of Origin
United States

Dimensions

Cable Length (Ft.)
12
Overall Width (In.)
5 1/2 in
Overall Depth (In.)
13.25 in
Overall Height (In.)
9 in
Overall Depth
13.3 in
Overall Height
9 in
For Maximum Material Thickness
3/8 in
For Minimum Material Thickness
1/16 in
Cutting Cable Length
12 ft
Power Cord Length
10 ft
Ground Cord Length
12 ft
Overall Width
5.5 in
For Material Thickness - Maximum
3/8 in
For Material Thickness - Minimum
1/16 in

Details

Item
Plasma Cutter
Rated Output
30 A
Input Voltage
110/115/120/220/230/240V AC
Cutting Capacity (In.)
3/8 at 10 IPM
Series
Spectrum 375 X-TREME
Input (Amps)
13.6/20A
Design
Inverter
PSI
90-120
Duty Cycle
120V (20A) - 20%, 120V (15A) - 35%, 240V - 35%
Application
Metal Cutting
Includes
10 ft MVP power cord, Consumables Box with 2 electrodes, 2 tips, deflector, and air fitting, Heavy-Duty Work Clamp with 12 ft flexible cable and quick connect, MVP plugs 5-15P, 6-50P, Shoulder Strap, X-CASE, XT30 hand-held torch with 12 ft Cable
Required Air Flow
5 cfm
Plasma Gas Type
Air, N2 (Nitrogen)
Plasma Cutter Model
907529
Phase
Single
Plasma Torch Type
Handheld
Input Frequency
50/60 Hz
Standards
CSA
Maximum Output Current
30 A
Plasma Cutting Output @ Duty Cycle
20 A @ 88V DC, 60% (120 V), 27 A @ 92V DC, 35% (120 V), 30 A @ 92V DC, 40% (240 V)
Cutting Configuration
Plasma Cutting
Max. Input Current
20 A @ 120V DC (Single-Phase)
Weight
19 lb
Plug Type
5-15P
Color
Blue
Plasma Cutting Minimum Output Current
14 A
Welding Processes
Plasma Cutting
Maximum Pressure - Air Compressor
120 psi
For Material Type
Aluminum, Mild Steel, Stainless Steel
Amperage - Maximum
30 A
Rated Output @ Duty Cycle
20 A @ 88V DC, 60% (120 V), 27 A @ 92V DC, 35% (120 V), 30 A @ 92V DC, 40% (240 V)
Maximum Input Current
20 A @ 120V DC (Single-Phase)
Plasma Cutter Series
Spectrum 375 X-TREME
Process
Plasma Cutting
For Gas Type
Air, N2 (Nitrogen)
Input Air Pressure - Minimum
90 psi
Minimum Input Air Flow Rate
5 cfm
Amperage - Minimum
14 A
Input Air Pressure - Maximum
120 psi

Description

Plasma Cutter, Cutting Configuration Plasma Cutting, For Material Type Aluminum, Mild Steel, Stainless Steel, For Maximum Material Thickness 3/8 in, For Minimum Material Thickness 1/16 in, Input Frequency 50/60 Hz, Input Voltage 110 V AC, 115 V AC, 120 V AC, 220 V AC, 230 V AC, 240 V AC, Max. Input Current 20 A @ 120V DC (Single-Phase), Phase Single-Phase, Plasma Cutter Model 907529, Maximum Output Current 30 A, Plasma Cutting Minimum Output Current 14 A
